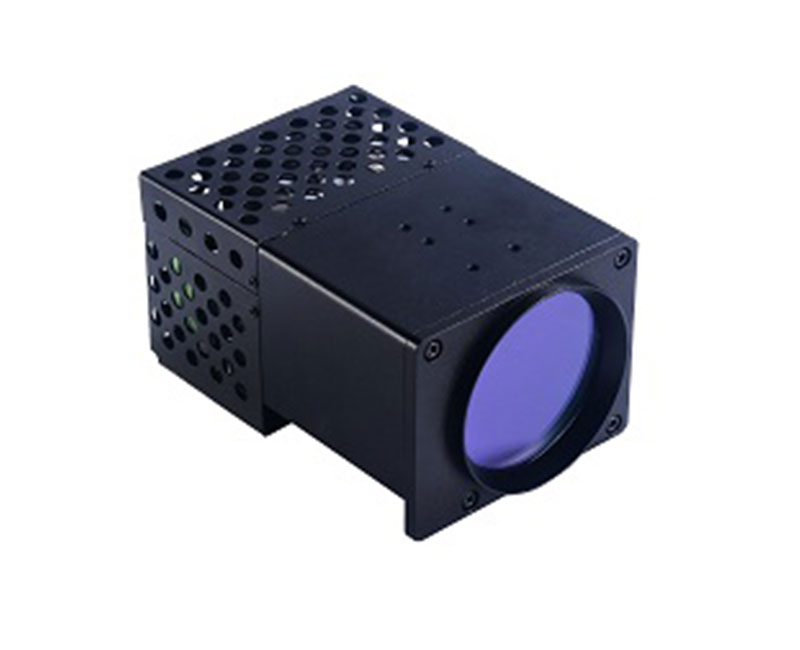

808nm 1500m VCSEL Array IR/infrared laser illuminator LL21D5-0153-808CAP
  • 808nm 1500m VCSEL Array IR/infrared laser illuminator LL21D5-0153-808CAP

808nm 1500m VCSEL Array IR/infrared laser illuminator LL21D5-0153-808CAP

    This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
    This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D, Sony VISCA and QLINK. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via serial port, users can call the instruction to operate conveniently in use.

Description

This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D, Sony VISCA and QLINK. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via serial port, users can call the instruction to operate conveniently in use.


Features

■ Beam angle zooming electrically, up to 1200 steps
■ Illumination over 1500m long range
■ High reliability, lifetime up to 50000hrs
■ Compact, easy to integrate
■ RS232, RS485, TTL interface optional
■ Negligible off-axis divergence,easy to collimate with camera lens
■ Uniform beam intensity, speckle free
■ Operating state memory
■ Predefining position
■ Low heat, high efficiency


Applications

■ Speed Dome
■ PTZ camera
■ Box camera
■ Highway monitoring
■ Display applications
■ Military applications


Specifications

ParametersTypical valuesUnitRemarks
Model no.LL21D5-0153-808CAP

Laser modeMutimode
Wavelength808±10nm
Optical power3.5w@exit
Spot shapeCircular

Illuminating distance1500m
Spot uniformexcellent

Fan angle0.85-53°±0.2°
Operating voltage12V

Operating current<2A
Operating modeCW

Lifetime50000hrs
Operating temperature-40- +85°
Storage temperature-40- +85°
Power consumption<25w
DimensionsH138xW86xH68mm
MaterialAlloy

Surface colorBlack-
Laser classification2

Control A/TxYellow

Control B/RxBlue

Control cathodeWhite

Power anodeRed

Power cathodeBlack

Protocol interfaceRS232; RS485; TTL

ProtocolQLINK protocol/Pelco D/Sony VISCA
optional
Weight800g
Heat dissipationForced wind

*
*
*
*
*
