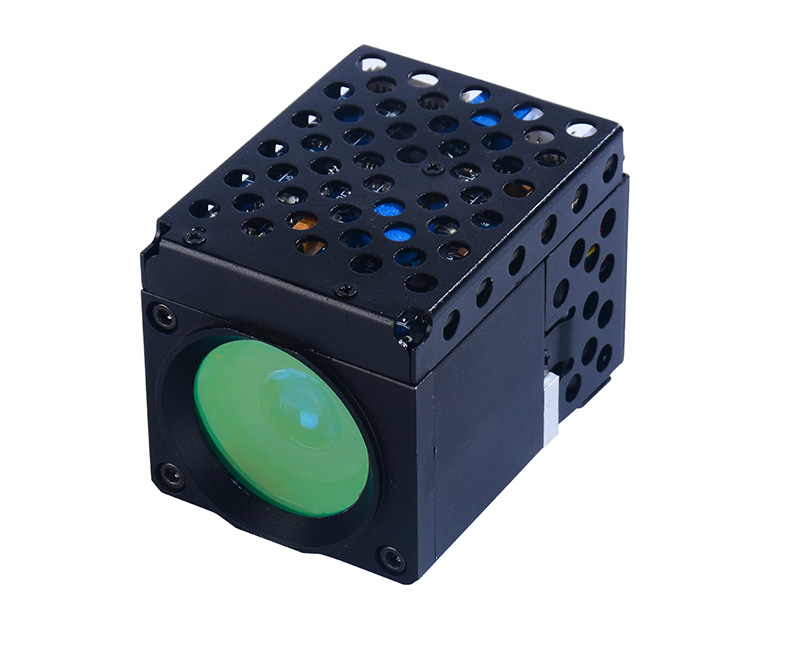

940nm 300m VCSEL Array IR/infrared laser illuminator LL1300-0170-940CAP
  • 940nm 300m VCSEL Array IR/infrared laser illuminator LL1300-0170-940CAP

940nm 300m VCSEL Array IR/infrared laser illuminator LL1300-0170-940CAP

    This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
    This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via protocols, users can call the instruction to operate conveniently in use.

Description

This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via protocols, users can call the instruction to operate conveniently in use.


Features

■ Beam angle zooming electrically, 240 or stepless optical zoom
■ Illumination to 300m range
■ High reliability, lifetime up to 50000hrs
■ Compact, easy to integrate
■ RS232, RS485 interface optional
■ Negligible off-axis divergence,easy to collimate with camera lens
■ Uniform beam intensity, speckle free
■ Operating state memory
■ Predefining position
■ Low heat, high efficiency


Applications

■ Highway monitoring
■ PTZ camera
■ Harbor monitoring
■ Forest fire prevention
■ Boundary monitoring
■ Traffic monitoring
■ Military applications


Specifications

ParametersTypical valuesUnitRemarks
Model no.LL1300-0170-940CAP

Laser modeMutimode
Wavelength940+/-10nm
Optical power1.8w@exit
Spot shapeCircular

Illuminating distance300m
Spot uniformexcellent

Fan angle1.7-70°±0.2°
Operating voltage12V

Operating current1A
Operating modeContinuos

Lifetime50000hrs
Operating temperature-10- +70°
Storage temperature-40- +85°
Power consumption<12w
Dimensions70´51´51mm
MaterialAlloy

Surface colorBlack-
Laser classification1M

Control A/TxYellow

Control B/RxBlue

Control cathodeWhite

Power anodeRed

Power cathodeBlack

Protocol interfaceRS232; RS485;TTL

ProtocolPelco D
optional
Surface processing-

Weight300g
Heat dissipationForced wind



*
*
*
*
*
