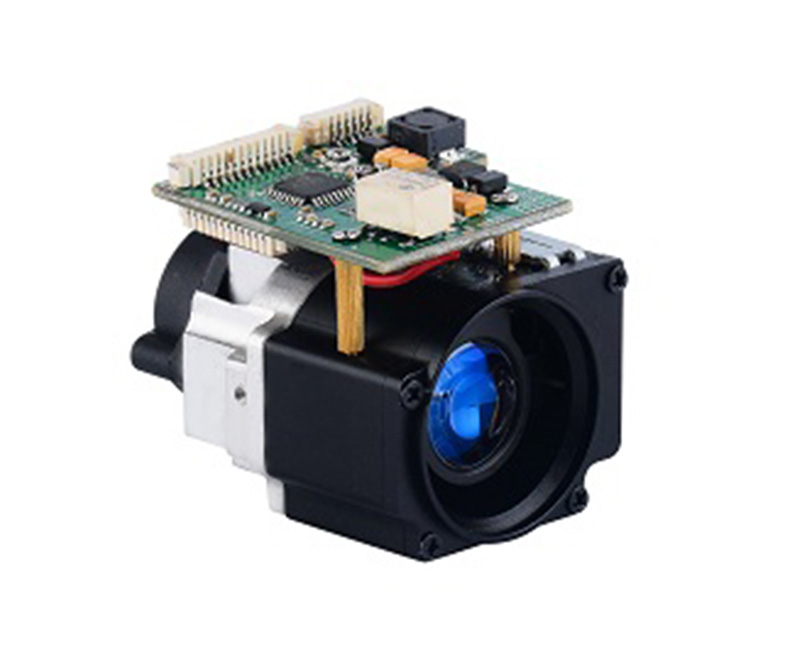

860nm 300m VCSEL Array IR/infrared laser illuminator LL1300-0265-860CAA
  • 860nm 300m VCSEL Array IR/infrared laser illuminator LL1300-0265-860CAA

860nm 300m VCSEL Array IR/infrared laser illuminator LL1300-0265-860CAA

    This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
    This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via serial port, users can call the instruction to operate conveniently in use.

Description

This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via serial port, users can call the instruction to operate conveniently in use.


Features

■ Continuously beam angle zooming electrically
■ Illumination over 300m range
■ High reliability, lifetime up to 50000hrs
■ Compact, easy to integrate
■ TTL interface
■ Negligible off-axis divergence,easy to collimate with camera lens
■ Uniform beam intensity, speckle free
■ Operating state memory
■ Predefining position
■ Low heat, high efficiency


Applications

■ Speed Dome
■ PTZ camera
■ Box camera
■ Highway monitoring
■ Display applications
■ Military applications


Specifications

ParametersTypical valuesUnitRemarks
Model no.LL1300-0265-860CAA

Laser modeMutimode
Wavelength860±10nm
Optical power1.2±0.1w@exit
Spot shapeCircular

Illuminating distance300m
Spot uniformexcellent

Fan angle1.95-65°±0.2°
Operating voltage12V

Operating current<1A
Operating modeCW

Lifetime50000hrs
Operating temperature-40- +85°
Storage temperature-40- +85°
Power consumption<12w
DimensionsL52´W38´H38mm
MaterialAlloy

Surface colorBlack-
Laser classification1

Protocol interfaceRefer to manual

ProtocolPelco D

Surface processing-

WeightAround 80g
Heat dissipationForced wind


*
*
*
*
*
