TYSON 4mm mini laser module for hot sale

Jun. 13, 2017

With 65nm series LASER modules introduces new low cost laser modules into the OEM market.

The absolutely smallest modules in the world contain the laser diode, drive electronics, and optics all in a metal housing. They can be operated directly with 3 VDC without additional electronics. The integrated APC (automatic power control) electronics allow the laser diode to be operated automatically in the working point with the desired output power, increasing the life expectancy of the module. The smallest modules have a diameter of only 4 mm at a length of just 13.7 mm.

In total, dot lasers with a collimated or focusable beam at 635/650 nm are available for selection in twelve different kinds of housings.


The smalles size module contains a laser diode, circuit, collimating lens. Wavelength is 650nm, Power is <1mW, <5mW

Operating current:<40mA

Operating Voltage:DC3V

Spot diameter at 10 meter:<20x15mm

Life time:8000 hours

Operating temperature:0C~+50C

Storage temperature:-10C~+85C


Head material Copper, Plastic window.

Characteristics: Lower power consumption; Small beam divergence, High feasibility

Applications: Machine vision; Industrial inspection; Industrial marking devices; 3D contour mapping; Positioning & visualization; Biomedical; High-end alignment

Laser targeting devices and so on..

4mm mini laser modules are the right choice if you are looking for an easy and inexpensive solution in large quantities. Typical applications for these laser diode modules are consumer products.

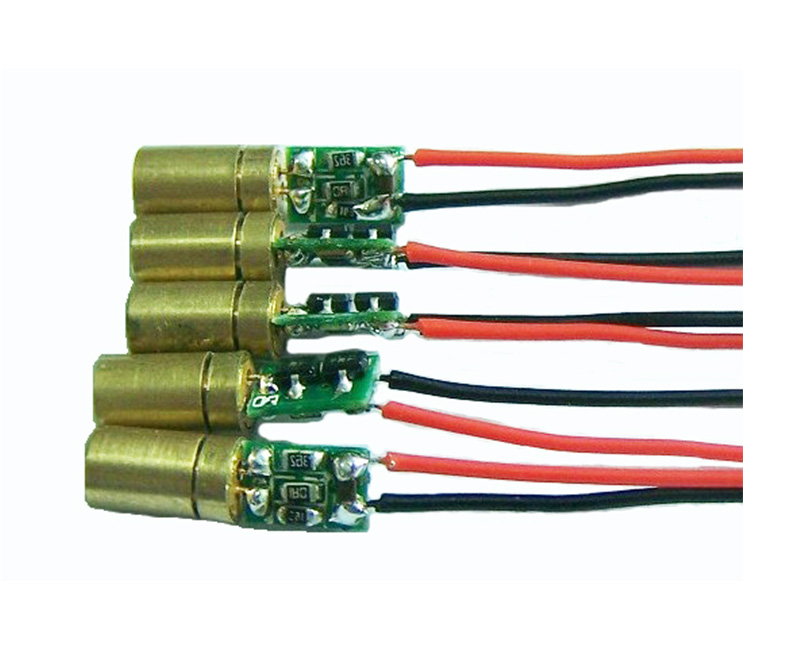

4mm mini laser modules
