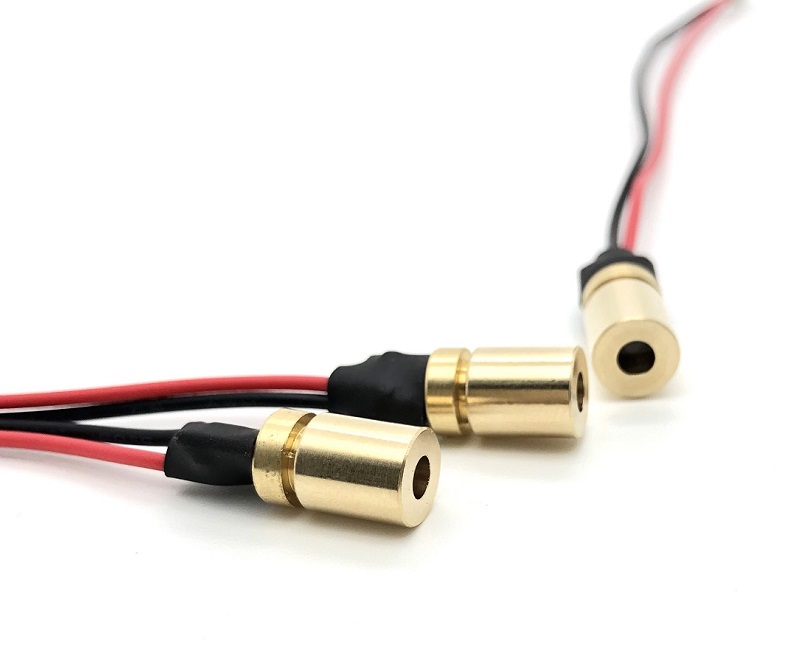

650nm Red mini laser module
  • 650nm Red mini laser module

650nm Red mini laser module

    Wavelength:650nm

    Output power:<1mW,<5mW

    Operating current:<=30mA

    Operating Voltage:DC3V-5V

    Spot diameter at 10 meter:<12mm

    Operating temperature:0C~+50C

    Storage temperature:-10C~+85C

    Dimensions:6.2x18mm

    Head material Copper,Plastic window.


Specifications:


Wavelength:650nm

Output power:<1mW,<5mW

Operating current:<=30mA

Operating Voltage:DC3V-5V

Spot diameter at 10 meter:<12mm

Operating temperature:0C~+50C

Storage temperature:-10C~+85C

Dimensions:6.2x18mm

Head material Copper,Plastic window.

PCB material is FR-4.


Characteristics:


Lower power consumption

Compact laser module with small beam divergence,High feasibility


Applications:


Machine vision

Industrial inspection

Industrial marking devices

3D contour mapping

Positioning & visualization

Biomedical

High-end alignment

Laser targeting devices and so on.


*
*
*
*
*
