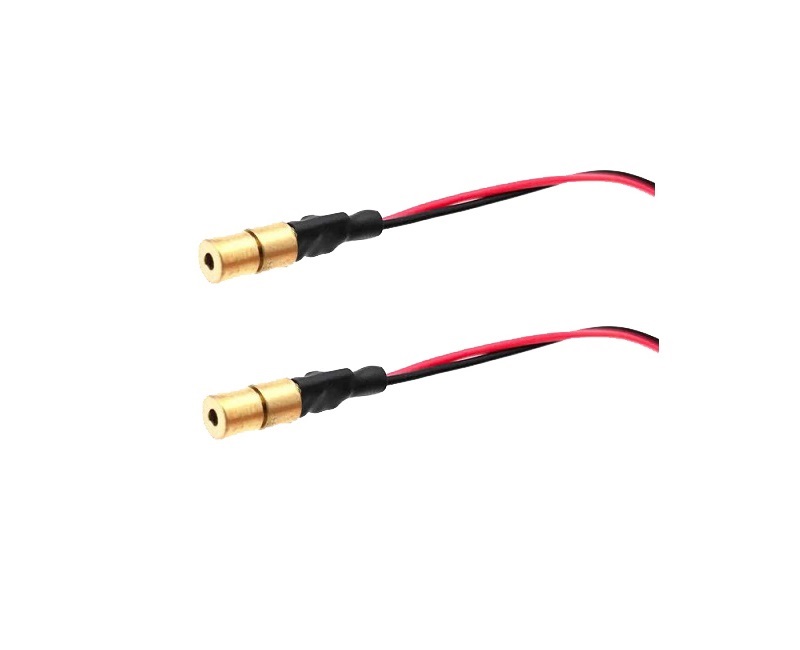

650nm smallest size laser module 4mm laser module
  • 650nm smallest size laser module 4mm laser module

650nm smallest size laser module 4mm laser module

    The smalles size module contains a laser diode,circuit,collimating lens.wavelength is 650nm,Power is <1mW,<5mW

    Operating current:<40mA

    Operating Voltage:DC3V

    Spot diameter at 10 meter:<20x15mm

    Life time:8000 hours

    Operating temperature:0C~+50C

    Storage temperature:-10C~+85C


Specifications:


The smalles size module contains a laser diode,circuit,collimating lens.wavelength is 650nm,Power is <1mW,<5mW

Operating current:<40mA

Operating Voltage:DC3V

Spot diameter at 10 meter:<20x15mm

Life time:8000 hours

Operating temperature:0C~+50C

Storage temperature:-10C~+85C

Dimensions:4x13.7mm

Head material Copper,Plastic window.


Characteristics:


Lower power consumption

Small beam divergence,High feasibility


Applications:


Machine vision

Industrial inspection

Industrial marking devices

3D contour mapping

Positioning & visualization

Biomedical

High-end alignment

Laser targeting devices and so on..


*
*
*
*
*
