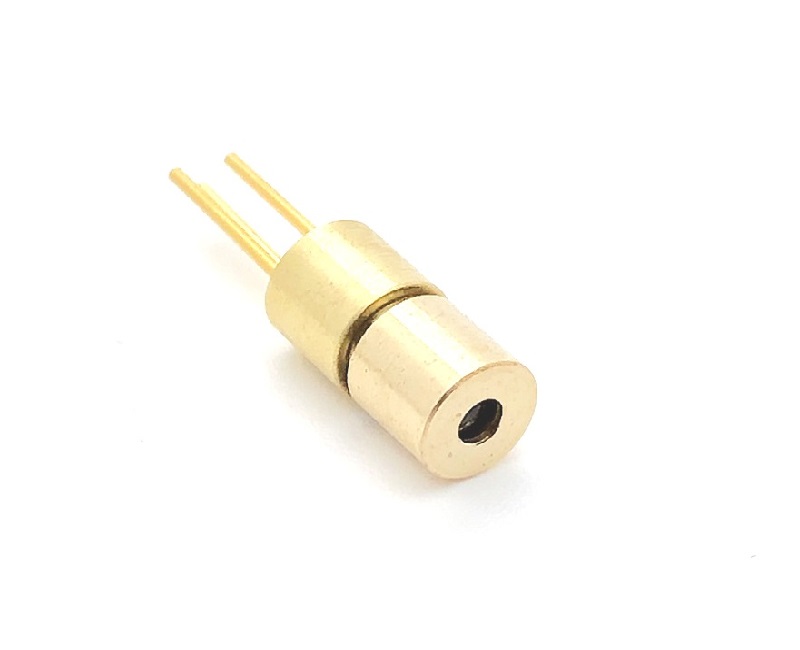

Red laser module without pcb
  • Red laser module without pcb

Red laser module without pcb

    Wavelength:650nm

    Output power:<1mW, <5mW

    Operating current:<40mA

    Operating Voltage:DC2.1-2.4V

    Spot diameter at 10 meter:<12mm

    Operating temperature:0C~+50C

    Storage temperature:-10C~+85C

    Dimensions:6x10.5mm


Specifications:


Wavelength:650nm

Output power:<1mW, <5mW

Operating current:<40mA

Operating Voltage:DC2.1-2.4V

Spot diameter at 10 meter:<12mm

Operating temperature:0C~+50C

Storage temperature:-10C~+85C

Dimensions:6x10.5mm

Head material Copper,Plastic window.


Characteristics:


Lower power consumption

Small beam divergence,High feasibility


Applications:


Machine vision

Industrial inspection

Industrial marking devices

3D contour mapping

Positioning & visualization

Biomedical

High-end alignment

Laser targeting devices and so on


*
*
*
*
*
