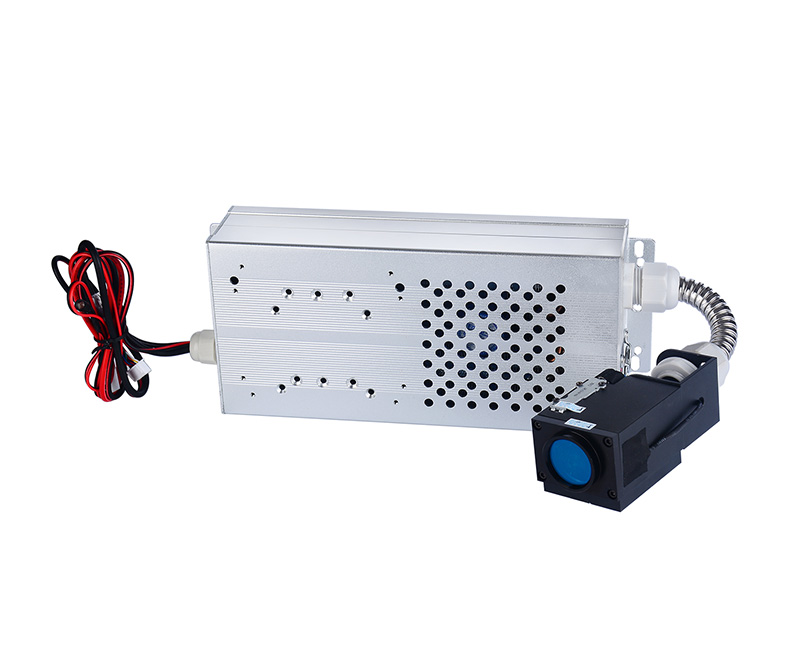

3000m Fiber-Coupled IR Laser Illuminator LL2003-0023-xxxCAA

Description

This laser illuminator is high performance integrated with high quality fiber-coupled laser diode and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via serial port, users can call the instruction to operate conveniently in use.
As the optic head is separated from diode and circuit, it is very easy to collimate the laser lens and camera lens, which can make the tunable rack compact.

Features

■ Beam angle zooming electrically
■ Illumination over 3000m range
■ High reliability, lifetime up to 20000hrs
■ Compact, easy to integrate
■ RS232, RS485, TTL interface optional
■ Negligible off-axis divergence,easy to collimate with camera lens
■ Uniform beam intensity, speckle free
■ Operating state memory
■ Predefining position
■ Low heat, high efficiency

Applications

■ Video surveillance system

■ Automobile night vision

■ Machining vision

■ Optical curtain

■ Display applications

■ Military applications

Specifications
