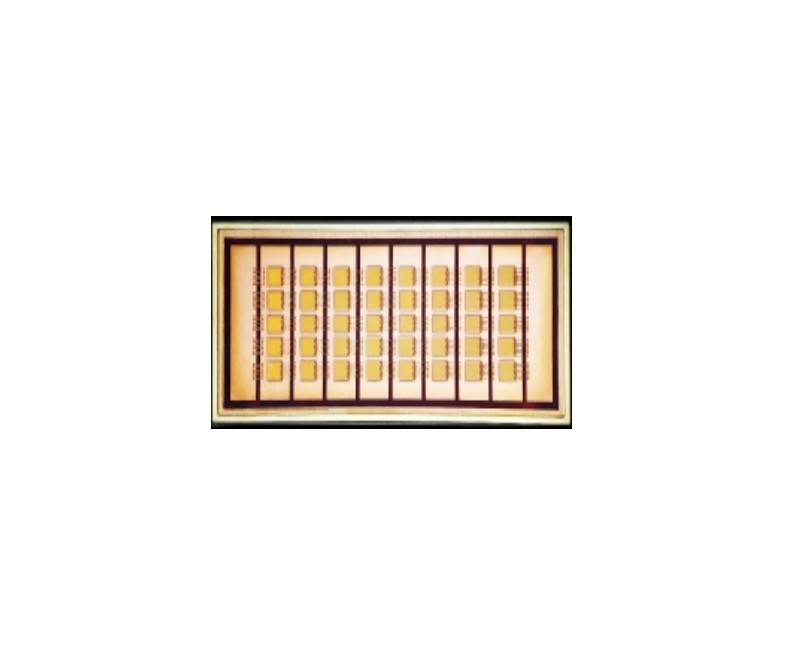

850nm 200W VCSEL Diode
Features
850nm single wavelength
Low wavelength drift
Circular spot
SMD package
High Reliability
Easy to collimate
Applications
Scanning lidars
Pump source of solid-state laser
Laser machining
3D sensors
Cosmetics
Absolute Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Case Operating Temp | Top | -40 to 85 | ℃ |
| Storage Temp | Tsto | -40 to 105 | ℃ |
| Reflow Soldering Temperature | Tsdr | 260℃(10s) | ℃ |
| Reverse Voltage | Vr | 22 | V |
| Maximum Continuous Current | Imax | 55 | A |
| ESD exposure (Human body) model | Imax | 2K | V |
Optical-electrical characteristics @25℃, pulsewidth100ms, Duty Cycle10%
| VCSEL Parameters | Symbol | Conditions | Min. | Typ. | Max. | Units |
| Optical Power Output | Po | IF =36A | 200 | W | ||
| Threshold Current | Ith | - | 5 | A | ||
| Forward Current | - | - | 36 | A | ||
| Slope Efficiency | - | - | 5.5 | W/A | ||
| Power Conversion Efficiency | η | IF =36A | 28 | % | ||
| Peak Wavelength | λP | Po=200W | 840 | 850 | 860 | nm |
| Laser Forward Voltage | VF | IF =36A | 19 | V | ||
| Series Resistance | RS | IF =36A | 0.1 | |||
| Emission area | - | - | 13X23 | mm | ||
| Beam Angle (1/e^2) | θ | IF =36A | 25 | Degrees | ||
| Beam Angle FWHM | θ | IF =36A | - | Degrees | ||
| Duty cycle | - | - | 10 | % | ||
| Illuminance area | - | @13.5mm | 1.4X3.2 | cm2 | ||
| Energy density | - | 1Hz, IF =36A | 5.19 | J/cm2 | ||
| Wavelength shift | ∂λP/∂T | IF =36A | 0.07 | nm/°C | ||
| Soldering Temperature | - | - | 260(10s) | °C | ||
| Substrate | Cu | |||||
