Features:
850nm Multimode VCSEL
High Efficiency (WPE), >35% @50C
Small emission area, easy to collimate

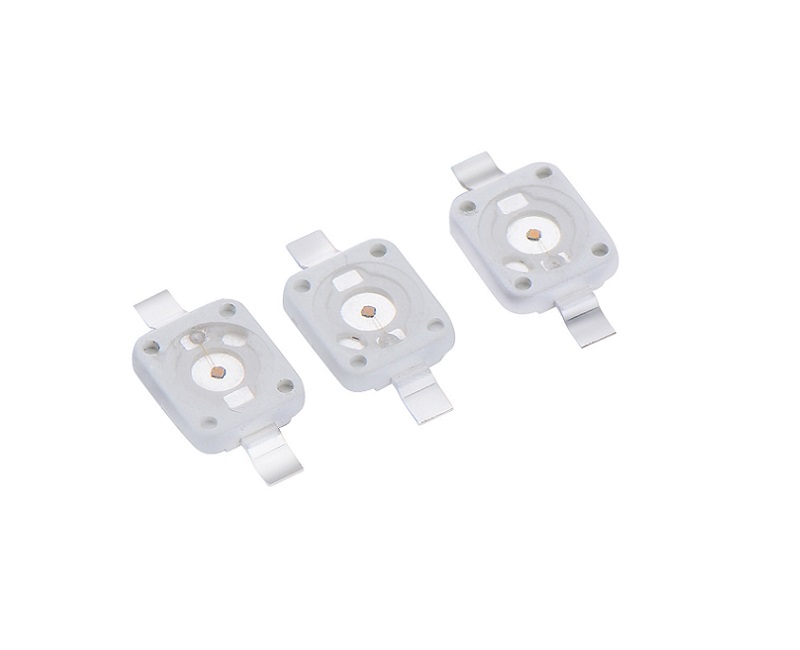

850nm 700mW CW VCSEL Laser Diode 7060 package
Features:
850nm Multimode VCSEL
High Efficiency (WPE), >35% @50C
Small emission area, easy to collimate
Applications:
3D Imaging
Gesture Recognition
Laser illumination,
Medical application
Broadband access network
Pump
Absolute maximum ratings:
| Parameter | Rating |
| Storage Temperature | -40 to +85C |
| Case Operating Temperature | 0 to 60C |
| Relative Humidity | 5% to 90% |
| Reverse Power Supply Voltage | 5V |
| Maximum continuous forward current | 1A |
| ESD Exposure (Human Body Model) | 1KV' |
II. Electro-Optical Characteristics (Top 25 deg C unless otherwise stated)
| VCSEL Parameters | Test Condition | Symbol | Min. | Typ. | Max | Units | Notes |
| Optical Power Output | IF=0.85A | Po | 700 | mW | 2 | ||
| Threshold Current | Ith | 70 | mA | ||||
| Slope Efficiency | Po =700mW | η | 1.02 | mW/mA | 3 | ||
| Wall Plug Efficiency | If=0.85A | 37 | % | ||||
| Emission Area | 500x500 | um | |||||
| Peak Wave length | If=0.85A | λp | 850+/-1 5 | nm | |||
| Laser Forward Voltage | If=0.85A | VF | 2.2+/-0.1 | V | |||
| Series Resistance | If=0.85A | Rs | 2.6 | Ohms | |||
| Beam Angle | If=0.85A | 20 | Degrees |
