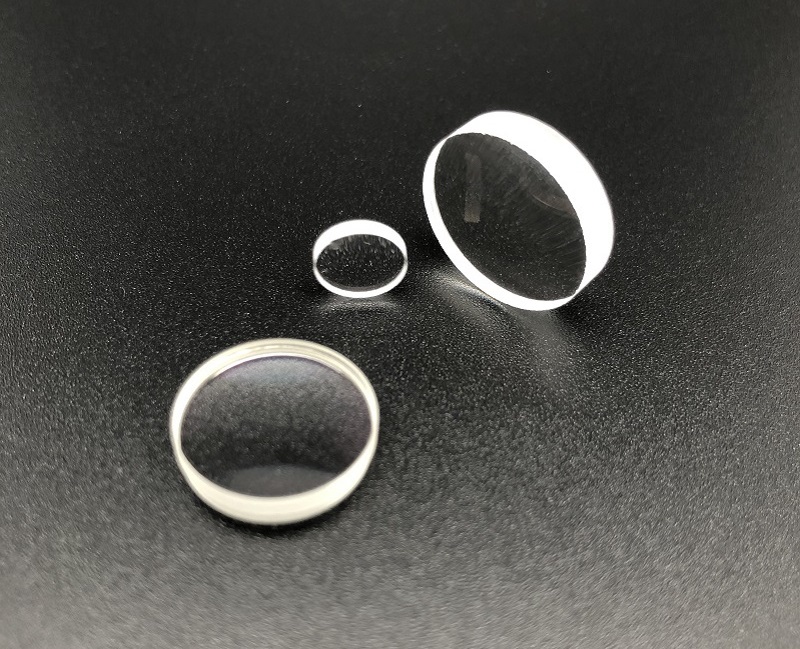

We provide Aspheric Lens with different specification, we also can make it according to customer's requirement.
We provide Aspheric Lens with different specification, we also can make it according to customer's requirement.
| No. | Lens diameter | Part No. | Material | Design Wavelength | NA | CA | EFL | Working Distance | Outer Diameter | Center Thickness | C/G Thickness | AR Coating |
| (nm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||||
| 1 | 11mm Aspheric lens | TSJ11F15.18-01 | L-BAL42 | 639 | 0.33 | 9.60 | 15.18 | 13.48 | 11.00 | 3.00 | 0.25 | Y |
| 2 | 10.5MM Aspheric lens | TSJ10F15.18-02 | L-BAL42 | 639 | 0.30 | 9.00 | 15.18 | 13.48 | 10.50 | 3.00 | 0.25 | Y |
| 3 | 9.5MM Aspheric lens | TSJ95F24.6-03 | L-BAL42 | 785 | 0.16 | 7.80 | 24.06 | 22.77 | 9.50 | 2.35 | 0.29 | Y |
| 4 | 8MM Aspheric lens | TSJ80F11.2-04 | D-ZK2 | 635 | 0.30 | 6.80 | 11.20 | 9.70 | 8.00 | 2.66 | 0.25 | Y |
| 5 | 7MM Aspheric lens | TSJ70F12-05 | L-BAL42 | 635 | 0.21 | 5.00 | 12.00 | 10.55 | 7.00 | 2.36 | 0.25 | Y |
| 6 | 6.65MM Aspheric lens | TSJ66F8.9-06 | L-BAL42 | 635 | 0.30 | 5.30 | 8.90 | 7.55 | 6.65 | 2.36 | 0.25 | Y |
| 7 | 6.5MM Aspheric lens | TSJ65F8.9-07 | L-BAL42 | 635 | 0.30 | 5.30 | 8.90 | 7.55 | 6.50 | 2.36 | 0.25 | Y |
| 8 | 6.5MM Aspheric lens | TSJ65F12-08 | L-BAL42 | 635 | 0.21 | 5.00 | 12.00 | 10.55 | 6.50 | 2.36 | 0.25 | Y |
| 9 | 6.35MM Aspheric lens | TSJ63F10-09 | L-BAL42 | 786.5 | 0.20 | 5.40 | 10.00 | 8.26 | 6.35 | 3.00 | 0.25 | Y |
| 10 | 5.5MM Aspheric lens | TSJ55F8.8-10 | L-BAL42 | 635 | 0.25 | 4.60 | 8.80 | 7.30 | 5.50 | 2.40 | *** | Y |
| 11 | 8MM Aspheric lens | TSJ80F22.6-11 | D-ZK2 | 532 | 0.15 | 7.00 | 22.62 | 21.28 | 8.00 | 2.35 | 0.25 | Y |
| 12 | 3MM Aspheric lens | TSJ30F4.5-12 | D-ZK3 | 633 | 0.30 | 2.70 | 4.50 | 3.46 | 3.00 | 1.78 | 0.25 | Y |
| 13 | 3MM Aspheric lens | TSJ30F6.0-13 | D-ZK3 | 635 | 0.22 | 2.70 | 6.00 | 5.20 | 3.00 | 1.50 | 0.25 | Y |
| 14 | 3MM Aspheric lens | TSJ30F3.7-14 | D-ZK3 | 635 | 0.33 | 2.50 | 3.77 | 2.99 | 3.00 | 1.50 | 0.25 | Y |
| 15 | 8.8MM Aspheric lens | TSJ88F21-15 | L-BSL7 | 790 | 0.18 | 7.52 | 20.98 | 19.74 | 8.80 | 2.23 | 0.25 | Y |
| 16 | 4MM Aspheric lens | TSJ40F4.0-16 | D-ZK3 | 405 | 0.40 | 3.20 | 4.00 | 2.92 | 4.00 | 2.00 | 0.25 | Y |
| 17 | 2.5MM Aspheric lens | TSJ25F1.4-17 | D-ZK3 | 518 | 0.52 | 1.44 | 1.40 | 1.06 | 2.50 | 0.74 | 0.25 | Y |
| 18 | Laser coupling lens | TSJM25F.91-01 | L-LAH84 | 1550 | 0.45 | 0.84 | 0.91 | 0.45 | 2.50 | 0.88 | *** | Y |
| 19 | Laser coupling lens | TSJM37F1.18-02 | P-LASF47 | 1550 | 0.4/0.16 | 1.30 | 1.18 | 1.1/3.77 | 3.75 | 1.30 | *** | Y |
| 20 | 5MM Glued lens | TSJ50F9.8-18 | K9/ZF1 | 635 | / | / | 9.8 | 8.1 | 5 | 3.4 | / | Y |
| 21 | 4.7MM Aspheric lens | TSJ47F6.2-19 | D-ZK3 | 635 | 0.25 | 4.1 | 6.2 | 3.96 | 4.7 | 3.5 | / | Y |
| 22 | 6MM Aspheric lens | TSJ60F9.8-20 | D-ZK3 | 635 | 0.28 | 5.13 | 9.85 | 8.43 | 6 | 2.25 | / | Y |
| 23 | 4.5MM Aspheric lens | TSJ45F8-18C | L-BAL42 | 915 | 0.22 | 3.5 | 8 | 6.73 | 4.5 | 2 | *** | Y |
| 24 | 4.5MM Aspheric lens | TSJ45F2.75-19C | D-ZLaF52LA | 830 | 0.64 | 3.6 | 2.75 | 1.5 | 4.5 | 2.24 | *** | Y |
| 25 | 10MM Aspheric lens | TSJ10F16.7-20C | L-BAL42 | 976 | 0.25 | 9 | 16.7 | 14.84 | 10 | 2.92 | *** | Y |
| 26 | 3MM Aspheric lens | TSJ30F2-21C | D-ZK3 | 780 | 0.5 | 2 | 2 | 1.09 | 3 | 2 | 0.25 | Y |
| 27 | 3MM Aspheric lens | TSJ30F5-22C | D-ZK3 | 915 | 0.25 | 2.6 | 5 | 4.03 | 3 | 1.53 | *** | Y |
| 28 | 10MM Aspheric lens | TSJ10F19-023C | L-BAL42 | 915 | 0.23 | 8.8 | 19 | 17 | 10 | 2.15 | *** | Y |
| 29 | 7.2MM Aspheric lens | TSJ7.2F6.24-024C | D-ZK3 | 780 | 0.4 | 5 | 6.24 | 3.438 | 7.2 | 5.36 | 0.275 | Y |
| 30 | 1.97 LED lens | TMEL-001 | P-LASF47 | *** | *** | 1.77 | 0.91 | *** | 1.97 | 2.31 | *** | N |
| 31 | M9 lens | TSM9F8.8-21 | K9 | 635 | 0.29 | / | 8.8 | 6.05 | M9 | 10.5 | / | Y |
| 32 | M9 lens | TSM9F7.8-22 | K9 | 650 | 0.29 | / | 7.8 | 6.25 | M9 | 6 | / | Y |
| 33 | M9 lens | TSM9F7.8-23 | K9 | 450 | 0.374 | / | 10.82 | 6.36 | M9 | 8 | / | Y |
| 34 | 12MM Glued lens | TSJ12F40-027 | K9/ZF1 | 650 | / | / | 40 | / | 12 | 10 | / | Y |
| 35 | 15MM Glued lens | TSJ15F46.67-026 | K9/ZF1 | 650 | / | / | 46.67 | / | 15 | 4.2 | / | Y |
| 36 | 17MM Glued lens | TSJ17F60-025 | K9/ZF6 | 650 | / | / | 60 | / | 17 | 4 | / | Y |
| 37 | 8mm Plano convex lens | TSJ80F21-028 | K9 | 650 | / | / | 21 | / | 8 | 2 | / | Y |
| 38 | 8mm Plano convex lens | TSJ80F35-029 | K9 | 650 | / | / | 35 | / | 8 | 2 | / | Y |
| 39 | 7.9mm Plano convex lens | TSJ79F45-030 | K9 | 650 | / | / | 45 | / | 7.9 | 2 | / | Y |
| 40 | 8mm Double concave lens | TSK80F45-031 | K9 | 650 | / | / | / | / | 8 | 2.6 | / | N |
| 41 | 6MM Aspheric lens | TSJ60F4.0-32 | D-ZK2N | 450 | 0.55 | 5.6 | 4 | 0 | 6 | 2.8 | / | Y |
| 42 | 6MM Aspheric lens | TSJ60F8.0-33 | D-ZK3 | 635 | 0.26 | 5.8 | 8 | 6.54 | 6 | 2.3 | / | Y |
| 43 | 6MM Aspheric lens | TSJ60F15-34 | D-ZK3 | 635 | 0.15 | 5.6 | 15 | 13.64 | 6 | 2.1 | / | Y |
| 44 | 6MM Aspheric lens | TSJ60F12-35 | D-ZK3 | 635 | 0.2 | 5.6 | 12 | 10.7 | 6 | 2.1 | / | Y |
| 45 | 5MM Aspheric lens | TSJ50F10-36 | D-ZK3 | 635 | 0.28 | 5 | 10 | 8.42 | 5 | 2 | / | Y |
| 46 | 5MM Aspheric lens | TSJ50F6.2-37 | D-ZK3 | 635 | 0.27 | 4.1 | 6.2 | 3.96 | 5 | 3.5 | / | Y |
| 47 | 20MM Aspheric lens | TSJ20F28-38 | D-ZK3 | 905 | 0.14 | 18 | 28 | 25.46 | 20 | 5 | / | Y |
| 48 | 20MM Aspheric lens | TSJ20F38-39 | D-ZK3 | 905 | 0.11 | 19.4 | 38 | 35.56 | 20 | 4 | / | Y |
| 49 | 20MM Aspheric lens | TSJ20F47-40 | D-ZK3 | 650 | / | 19 | 45 | 14.5 | 20 | 3.95 | / | Y |
| 50 | 6.33MM Aspheric lens | TSJ6.33F4.02-41 | L-BAL35 | 408 | 0.6 | 4.8 | 4.02 | 2.57 | 6.33 | 3.3 | / | Y |
| 50 | 6.33mm Aspheric lens | TSJ6.33F4.02-41 | L-BAL35 | 408 | 0.6 | 4.8 | 4.05 | 2.57 | 6.33 | 3.3 | / | Y |
| 51 | 2.4mm Laser coupling lens | TSJ2.4F1.14-42 | N-BK7 | 1300 | 0.43/0.124 | 1.06 | 1.14±1% | 1.129/4.809 | 2.4（-0.02） | 1.239±0.02 | / | Y |
| 52 | M9 Lens | TSM9F4.0-43 | D-ZK2N | 450 | 0.55 | 5.6 | 4 | 2.76 | M9 | 6.5 | / | Y |
| 53 | M9 Lens | TSM9F8.0-44 | D-ZK3 | 635 | 0.26 | 5.8 | 8 | 6.55 | M9 | 6.5 | / | Y |
| 54 | M9 Lens | TSM9F10.0-45 | D-ZK3 | 635 | 0.28 | 5.2 | 10 | 8.43 | M9 | 6.5 | / | Y |
| 55 | M9 Lens | TSM9F12.0-46 | D-ZK3 | 635 | 0.18 | 5.6 | 12 | 10.74 | M9 | 6.5 | / | Y |
| 56 | M9 Lens | TSM9F15.0-47 | D-ZK3 | 635 | 0.15 | 5.6 | 15 | 13.64 | M9 | 6.5 | / | Y |
| 57 | 7mm Aspheric lens | TSJ70F8.0-48 | D-ZK2N | 635 | 0.2 | 6.5 | 8 | 5.67 | 7 | 2.3 | / | Y |
| 58 | 2.4mm Aspheric lens | TSJ2.4F1.14-49 | D-ZLAF52LA | 1310 | 0.55 | 1.3 | 1.14 | 0.72 | 2.4 | 1.24 | / | Y |
| 59 | 5mm Aspheric lens | TSJ50F8.0-50 | D-ZK3 | 635 | 0.26 | 5.8 | 8 | 6.5446 | 5 | 2.3 | / | Y |
| 60 | 12.7mm Plano Convex Lens | TSJ12.7F20-51 | K9 | / | / | / | 20 | / | 12.7 | 3 | / | N |
| 61 | 12.7mm Plano Convex Lens | TSJ12.7F25-52 | K9 | / | / | / | 25 | / | 12.7 | 2.8 | / | N |
| 62 | 12.7mm Plano Convex Lens | TSJ12.7F30-53 | K9 | / | / | / | 30 | / | 12.7 | 3.2 | / | N |
| 63 | 6.35mm Aspheric lens | TSJ6.35F4.61-54 | D-ZK3 | 635 | 0.6 | 5.5/4.4 | 4.61 | 2.89 | 6.36 | 31 | / | Y |
| 64 | 3mm Aspheric lens | TSJ30F1.95-55 | D-LAK6 | 635nm | 0.52 | 2.5 | 1.95 | 1.24 | 3 | 1.45 | / | Y |
| 65 | 3mm Aspheric lens | TSJ30F8.0-56 | D-ZK3 | 520nm | 0.16 | 2.5 | 8 | 6.54 | 3 | 2.5 | / | Y |
| 66 | 3.6mm Aspheric lens | TSJ3.6F6.2-57 | D-ZK3 | 635nm | 0.25 | 3.6 | 6.2 | 3.95 | 3.6 | 3.5 | / | Y |
| 67 | 4.5mm Aspheric lens | TSJ4.5F44-58 | D-ZK3 | 635nm | 0.46 | 4.5 | 4.4 | 2.04 | 4.5 | 4 | / | Y |
| 68 | 5.5mm Aspheric lens | TSJ5.5F4.4-59 | D-ZK3 | 635nm | 0.51 | 5.5 | 4.4 | 2.04 | 5.5 | 4 | / | Y |
| 69 | 4.7mm Aspheric lens | TSJ4.7F2.8-60 | D-ZLaF52LA | 635nm | 0.5/0.26 | 3.8 | 2.76 | 2.71 | 4.7 | 3.3 | / | Y |
| 70 | 5.6mm Aspheric lens | TSJ5.6F4.0-61 | D-ZK2N | 635nm | 0.55 | 5.6 | 4 | 2.76 | 5.6 | 2.8 | / | Y |
| 71 | 6mm Aspheric lens | TSJ6.0F4.5-62 | D-LAK6 | 635nm | 0.48 | 5.2 | 4.5 | 2.72 | 6 | 2.8 | / | Y |
| 72 | 6.17mm Aspheric lens | TSJ6.1F7.5-63 | D-ZK2N | 635nm | 5.9 | 7.5 | 5.95 | 6.17 | 2.45 | / | Y | |
| 73 | 6.35mm Aspheric lens | TSJ6.3F12-64 | D-ZK2N | 635nm | 0.18 | 5.6 | 12 | 10.73 | 6.35 | 2 | / | Y |
| 74 | 9mm Aspheric lens | TSJ9.0F15-65 | D-ZK2N | 905nm | 8.9 | 15 | 13.35 | 9 | 2.6 | / | Y | |
| 75 | 20*13mm Aspheric lens | TSJ20F38-66 | D-ZK2N | 905nm | 0.11 | 19.4 | 38 | 35.56 | 20*13 | 4 | / | Y |
| 76 | 2.4mm Aspheric lens | TSJ2.4F1.45-67 | D-ZK3 | 780 | 0.56 | 1.6 | 1.45 | 0.88 | 2.4 | 1 | / | Y |
| 77 | 3mm Aspheric lens | TSJ30F3.2-68 | D-ZLaF52LA | 633 | 0.37 | 2.5 | 3.2 | 2.09 | 3 | 2 | / | Y |
| 78 | 4.7mm Aspheric lens | TSJF4.7F6.16-69 | D-ZK3 | 780 | 0.3 | 3.7 | 6.16 | 4.37 | 4.7 | 3.48 | / | Y |
| 79 | 5.42mm Aspheric lens | TSJ5.42F4.47-70 | D-ZK3 | 780 | 0.47 | 4.2 | 4.47 | 3.08 | 5.42 | 3.45 | / | Y |
| 80 | 6.33mm Aspheric lens | TSJ6.33F3.1-71 | D-ZK3 | 830 | 0.67 | 5 | 3.1 | 1.76 | 6.33 | 3.21 | / | Y |
| 81 | 6.33mm Aspheric lens | TSJ6.33F4.02-72 | D-LAK6 | 408 | 0.6 | 4.8 | 4.02 | 2.41 | 6.33 | 2.9 | / | Y |
| 82 | 6.33mm Aspheric lens | TSJ6.33F13.85-73 | D-ZK3 | 650 | 0.18 | 5.1 | 13.85 | 12.1 | 6.33 | 2.77 | / | Y |
| 83 | 6.33mm Aspheric lens | TSJ6.33F4.05-74 | D-ZK3 | 445 | 0.63 | 5.2 | 4.05 | 2.8 | 6.33 | 3.1 | / | Y |
| 84 | 6.35mm Aspheric lens | TSJ6.35F6.43-75 | D-ZK2N | 830 | 0.43 | 5.6 | 6.43 | 4.7 | 6.35 | 3.11 | / | Y |
| 85 | 6.5mm Aspheric lens | TSJ6.5F15.3-76 | D-ZK3 | 780 | 0.16 | 5 | 15.29 | 13.89 | 6.5 | 2.21 | / | Y |
| 86 | 6.5mm Aspheric lens | TSJ6.5F18.4-77 | D-ZK3 | 780 | 0.15 | 5.5 | 18.39 | 17.09 | 6.5 | 2.18 | / | Y |
| 87 | 7.2mm Aspheric lens | TSJ7.2F11-78 | D-ZK3 | 633 | 0.28 | 6.1 | 10.99 | 7.9 | 7.2 | 5.03 | / | Y |
| 88 | 8mm Aspheric lens | TSJ8.0F8.42-79 | D-ZK3 | 635 | 0.37 | 6.2 | 8.42 | 7.05 | 8 | 2.3 | / | Y |
| 89 | 10mm Aspheric lens | TSJ10F8.0-80 | D-ZK3 | 780 | 0.5 | 8 | 8 | 5.9 | 10 | 3.43 | / | Y |
| 90 | 15mm Aspheric lens | TSJ15F11.24-81 | D-ZK3 | 587 | 0.62 | 13.5 | 11.24 | 6.83 | 15 | 7 | / | Y |
| 91 | 9.3mm Aspheric lens | TSJ9.3F32-82 | L-BSL7 | 785 | 0.122 | 7.8 | 31.99 | 30.73 | 9.3 | 2.3 | / | Y |
