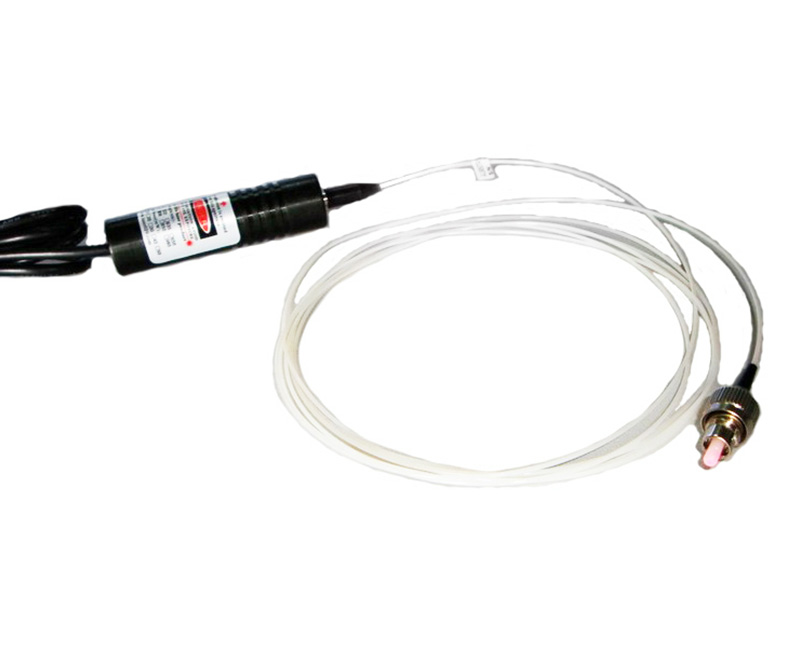

Our fiber pigtailed laser products have multi-wavelength choices covering the spectra band from blue to IR,which including 405nm, 457nm,473nm,532nm, 635nm, 660nm,671nm, 785nm, 808nm, 1064nm, and others customized colors. Varied options of fibers (Single-mode, PM and Multi-mode) and customized fiber output collimators are available at the same time.Featured with high reliability performance under laser wielding technology and low cost design, Fiber Pigtailed Lasers are idea solutions of bringing flexibility and convenience to industrial opto-electronic system design and maintenance by replacing traditional free-space lasers and color combiners without adding cost burden. The Fiber Pigtailed Laser Family covers a wide range of applications in Laser Aiming, Biomedical Instrumentation, and Raman Spectrometer, Digital Printing and other measurement systems.
Specifications:
Wavelength: 405nm, 457nm,473nm,532nm, 635nm, 658nm,671nm, 780nm, 808nm, 980nm，1064nm
Output Power: 0.1mW～200mW
Beam Divergence: 1.5mrad adjust
Spatial Mode: near TEM00(SM)
Fiber Coupling Efficiency: >40%(laser diode)>80%(DPSS laser)
Fiber type: SM,MM
Operating Voltage: DC3V-5V, AC220V
Operating Temperature: 10℃～+35℃
Storage Temperature: －10℃―80℃
