Wavelength:940nm
Operating voltage:2V
Life-time:50000 H
Optical power:15mW,30mW
Line thickness at 30cm:≤5mm
Dimensions:13*9mm
Features：
Uniform spot without streaks and noise；
Good directivity, long indication distance；
Low heat, high electro-optical conversion efficiency.
Applications:
Industrial marking devices
laser medical equipment
laser targeting devices

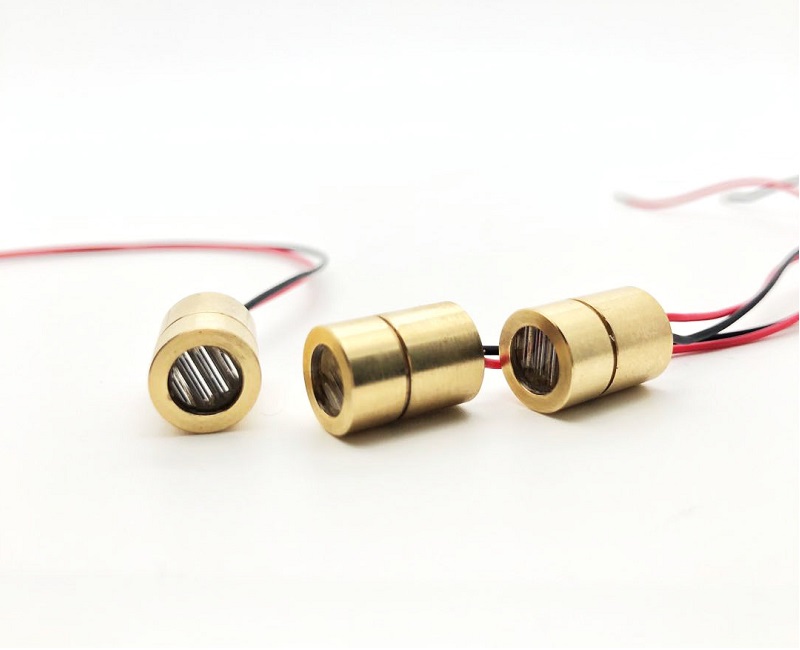

Product Introduction：
This product is designed with self-developed high-quality laser diodes, and the housing is made of copper material for better heat dissipation. Compared with traditional frequency doubling lasers and LED light sources, it has higher peak power and lower power consumption, Few wavelength drifts owing to temperature conversion. Performance is more reliable. The emission pulse width is also narrow. It does not need temperature and optical compensation itself, and has a wider working environment advantage than traditional emission light sources. This product is made of semiconductor laser diodes, with small size, light weight and low price.
Wavelength：940nm
Operating voltage：2V
Life-time：50000 H
Current：45mA
Optical power：15mW,30mW
Line thickness at 30cm:≤5mm
Operating temperature:-20℃~+60℃
Storage temperature:-40℃~+80℃
Dimensions:13*9mm
Fan angle:130 degree
Laser class:Class 3B
