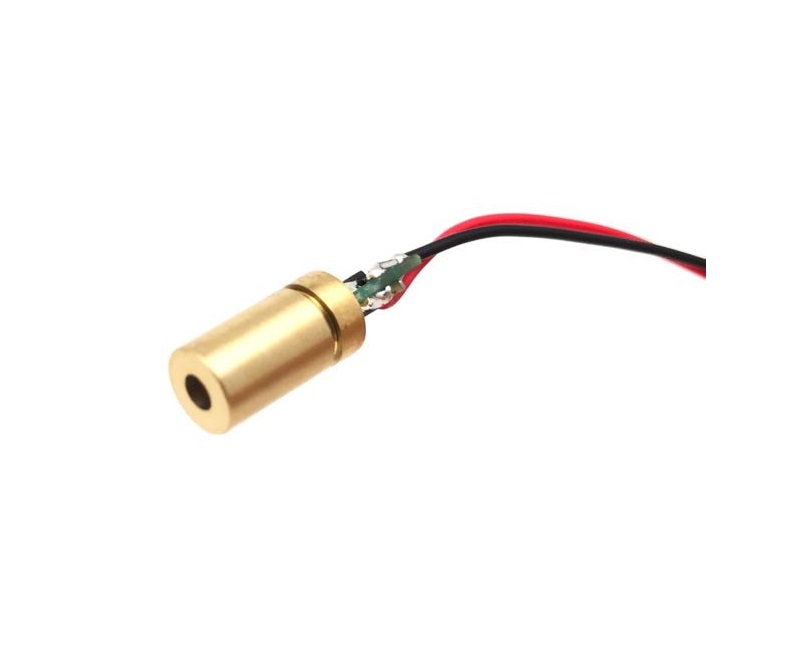

650nm 1-5mW red laser module for air detector/sensor 6x22mm
  • 650nm 1-5mW red laser module for air detector/sensor 6x22mm

650nm 1-5mW red laser module for air detector/sensor 6x22mm

    Peak wavelength:650nm

    Operating voltage:3V

    Operating current:<40mA

    Optical power:<5mW


Peak wavelength:650nm

Operating voltage:3V

Operating current:<40mA

Optical power:<5mW

Spot size at 15mm:<0.5mm

Operating time:10000 hours

Operating  temperature:-10℃~+50℃

Storage  temperature:-20℃~+70℃

Outside size:6x22mm


*
*
*
*
*
