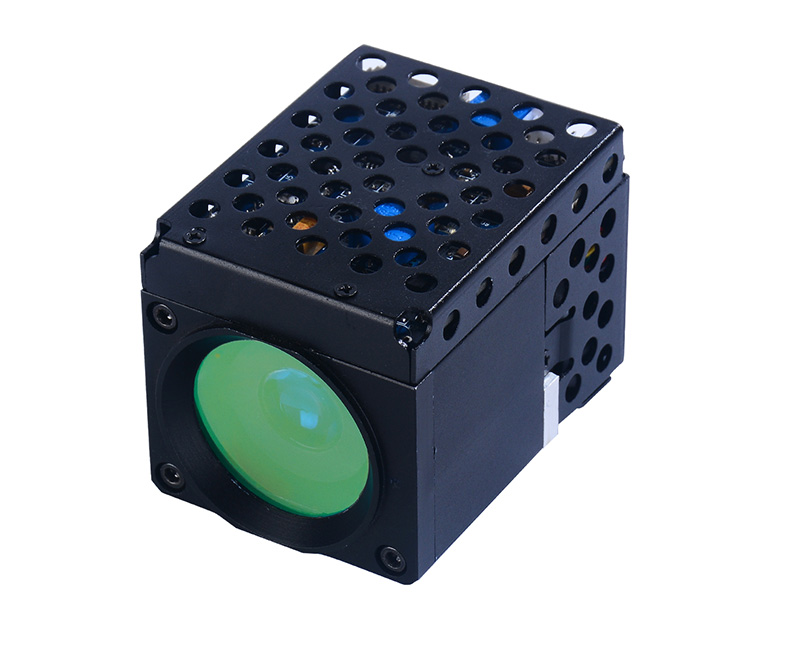

This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
Description
This laser illuminator is high performance integrated with high quality laser chip and excellent optics design, and outstanding circuit control with high efficiency. It has big beam angle zooming, which can match the field view angle of cameras. It also has friendly interfaces such as operating voltage, communication protocol and installation schematic. It can be widely used in high-speed dome, PTZ camera and traffic monitoring.
This illuminator is compatible with major lens and cameras, integrated with the protocols such as Pelco D. It is easy for users to implement the illuminator. Simultaneously, Position can be preset via protocols, users can call the instruction to operate conveniently in use.
Features
■ Beam angle zooming electrically, 240 or stepless optical zoom
■ Illumination to 300m range
■ High reliability, lifetime up to 50000hrs
■ Compact, easy to integrate
■ RS232, TTL, RS485 interface optional
■ Negligible off-axis divergence,easy to collimate with camera lens
■ Uniform beam intensity, speckle free
■ Operating state memory
■ Predefining position
■ Low heat, high efficiency
Applications
■ Highway monitoring
■ PTZ camera
■ Harbor monitoring
■ Forest fire prevention
■ Boundary monitoring
■ Traffic monitoring
■ Military applications
Specifications
| Parameters | Typical values | Unit | Remarks |
| Model no. | LL1300-0170-808CAP | ||
| Laser mode | Mutimode | － | |
| Wavelength | 808+/-10 | nm | |
| Optical power | 1.5 | w | @exit |
| Spot shape | Circular | ||
| Illuminating distance | 300 | m | |
| Spot uniform | excellent | ||
| Fan angle | 1.7-70 | ° | ±0.2° |
| Operating voltage | 12V | ||
| Operating current | 1 | A | |
| Operating mode | Continuos | ||
| Lifetime | 50000 | hrs | |
| Operating temperature | -10- +70 | ° | |
| Storage temperature | -40- +85 | ° | |
| Power consumption | ＜12 | w | |
| Dimensions | 70´51´51 | mm | |
| Material | Alloy | ||
| Surface color | Black | - | |
| Laser classification | 1M | ||
| Control A/Tx | Yellow | ||
| Control B/Rx | Blue | ||
| Control cathode | White | ||
| Power anode | Red | ||
| Power cathode | Black | ||
| Protocol interface | RS232; RS485; TTL | ||
| Protocol | Pelco D | optional | |
| Surface processing | - | ||
| Weight | 300 | g | |
| Heat dissipation | Forced wind |
