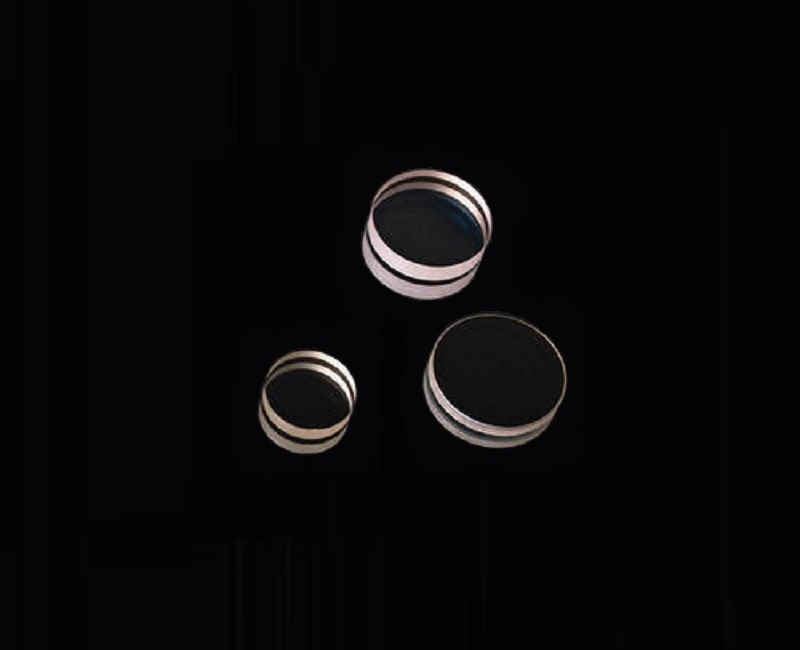

BK7 Bi-concave Spherical Lenses

Tyson offers lenses with various plano, concave, and convex configurations. Substrates include N-BK7, UV Fused Silica, N-SF11, Zinc Selenide, Calcium Fluoride, Silicon and so on. Many of our lenses are offered with a variety of coating options for the Ultraviolet (UV), visible, or Infrared (IR) spectrums.

Material:BK7

Design Wavelength:632.8nm

Focal Length Tolerance:±1%

Diameter Tolerance:+0.0/-0.1mm

Thickness Tolerance:±0.1mm

Surface Accuracy:λ/4@632.8nm

Surface Quality:40-20

Centration:<3'

Clear Aperture:>90%

Bevelling:<0.2×45°

        A:350-650nm

        B:650-1050nm

        C:1050-1580nm
