PRODUCT FEATURES PRODUCT FEATURES
High sensitivity High sensitivity High sensitivity High sensitivity
Low dark current noise
High reliability High reliability High reliability
Coated bandpass filter
High speed
Environment compatible
APPLICATIONS
Sensing i.e. Proximity
Laser Curtain
Lidars
Medical applications
Telecommunications
Temperature measurement
I. Absolute Maximum Ratings
| Parameter | Rating |
| Storage Temperature | -40 to 105°C |
| Case Operating Temperature | 20 to 85° |
| Relative Humidity | 10% to 8 5% |
| Reverse Breakdown Voltage | 33V (min.) |
| Maximum Reverse dark current | 5nA |
II. Electro-Optical Characteristics (Top 25℃)
| Parameters | Conditions | Symbol | Unit | Min. | Typ. | Max. |
| Forward Voltage | IF=10mA， Ee=0mW/cm2 | VF | V | 1.2 | ||
| Reverse Breakdown Voltage | IBR=10uA， Ee=0mW/cm2 | VBR | V | 33 | ||
| Reverse Dark Current | VR=10V, Ee=0mW/cm2 | ID | nA | 5 | ||
| Responsivity | VR=3V, @940nm | IL | A/W | 0.6 | ||
| Peak Sensing Wavelength | VR=3V | λp | nm | 940 | ||
| Total Capacitance | VR=5V, F=1MHz | CJ | pF | 1.1 | ||
| Active area | um | 265x265 | ||||

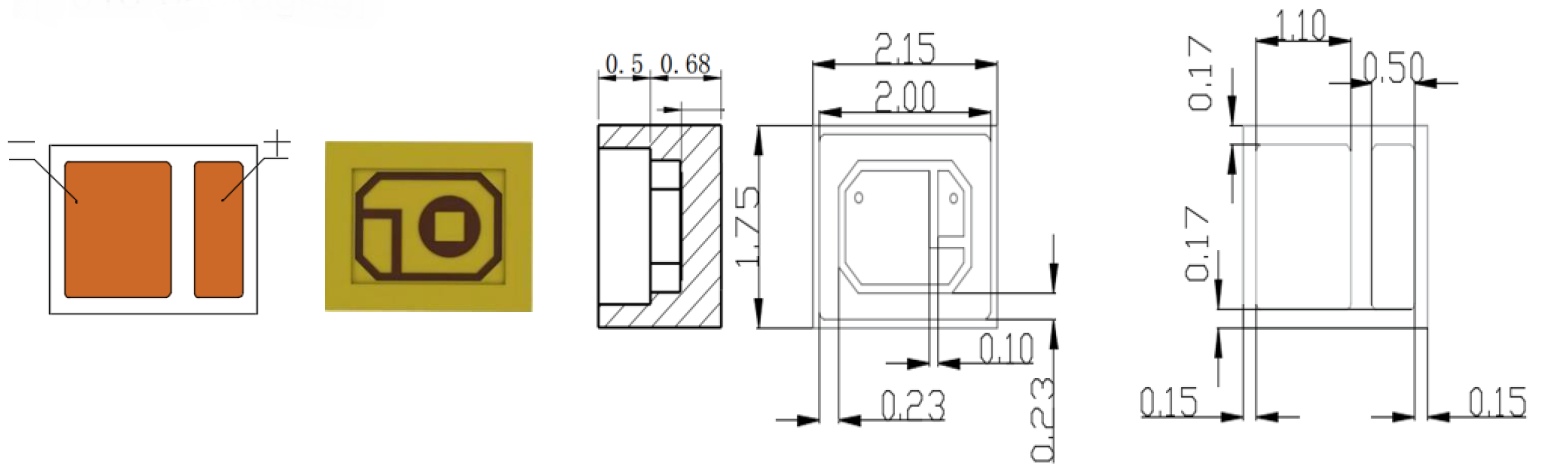

Mechanical Specification(unit: mm)
