The B1 series laser scanning radar adopts high performance, high pulse power VCSEL device and high quality optical design, advanced optmagnetic fusion design and high performance, high precision timing circuit, high measurement frequency and small volume. The distance detection in the two-dimensional plane of 360 °is realized. The infrared high power pulsed VCSEL laser is invisible to the naked eye and has strong anti-jamming ability, so it can be widely used in the navigation and obstacle avoidance of floor sweeper / robot.

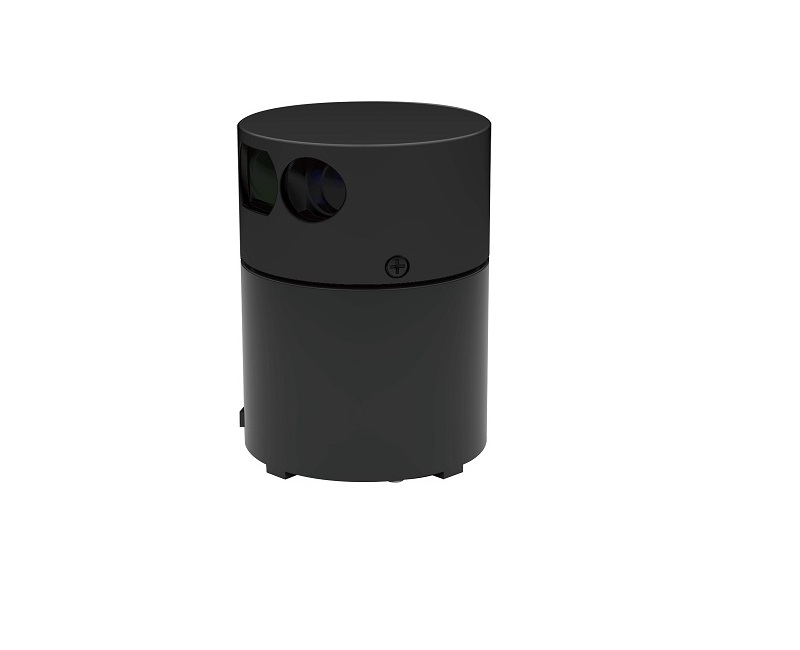

Laser Scanning Radar RF1006-C002-0020B1:
Features：
360° scanning distance measurement with high precision
VCSEL lighting source, excellent performance
High measurement frequency and wide range of measurement
Strong resistance to ambient light interference
Opto-magnetic fusion, compact structure
Application：
Sweeper navigation and obstacle avoidance
Environmental scanning and 3D modeling
Obstacle detection and evasion of security
Regional security
Service robot navigation
Description:
The B1 series laser scanning radar adopts high performance, high pulse power VCSEL device and high quality optical design, advanced optmagnetic fusion design and high performance, high precision timing circuit, high measurement frequency and small volume. The distance detection in the two-dimensional plane of 360 °is realized. The infrared high power pulsed VCSEL laser is invisible to the naked eye and has strong anti-jamming ability, so it can be widely used in the navigation and obstacle avoidance of floor sweeper / robot.
Specifications:
| Parameters | Min | Typical values | Max | Unit | Remarks |
| Measuring range | 6 | 6.5 | 7 | m | Gray |
| Measuring range | ±0.02 | m | |||
| Repeatability | ±0.02 | m | |||
| Repeatability | 6000 | 6500 | Hz | ||
| Scanning frequency | 5 | 10 | 20 | Hz | Rotating speed |
| Scanning angle | 0-360 | Deg | |||
| Angle resolution | 0.25 | Deg | |||
| Laser wavelength | 940 | nm | |||
| Divergence angle | 10 | mrad | |||
| Laser class | Class I | Eye safety | |||
| Power supply | DC5 | V | |||
| Power consumption | 1 | W | Rotating speed 20Hz | ||
| Output Interface | UART/RS232 | UART default | |||
| Operating temperature | -20 | +25 | +60 | ℃ | |
| Storage temperature | -40 | +25 | +70 | ℃ | |
| Water and dust proof | IP45 | ||||
| Can material and color | ABS（Black） | ||||
| Dimensions | H59×φ48 | mm |
