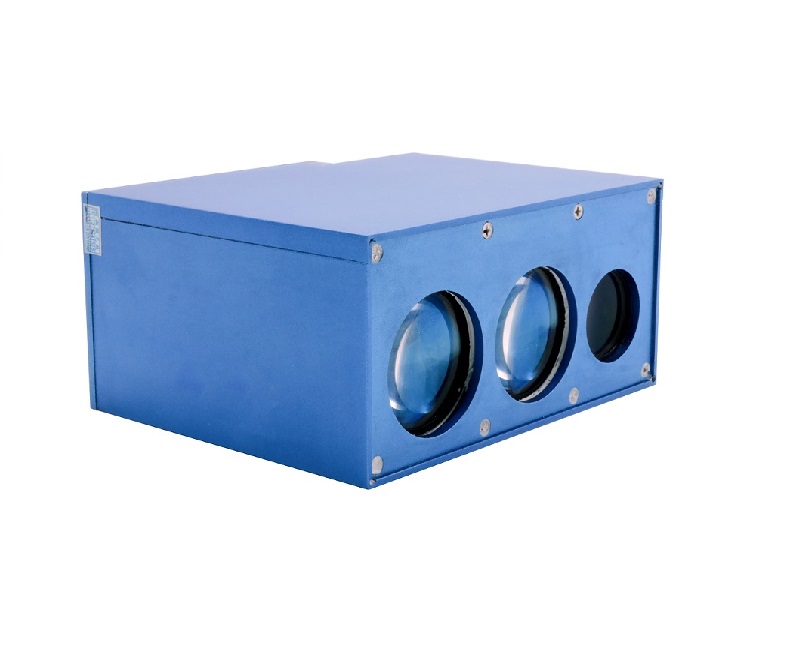

Laser Range Sensor RF200x-C100-0005A1
Features:
High precision
High measurement frequency
Long ranging up to2km
High reliability
IP65 waterproof protection
Good real-time performance
Friendly interface
Small size
Applications:
Security surveillances
Positioning sensing
Traffic control system
Industrial automation
Military applications
Description:
A1 is the range finder sensor with high-performance and high measurement frequency, integrated with excellent optics design and high accuracy timer. It can measure up to 20Hz stably and can give out the real-time distance between range finder and the object. It is easy to integrate due to its friendly interfaces and compact size. It is ideal for positioning sensing.
Specifications:
| Parameters | Parameter value | Unit | Remarks | |
| Model no. | RF2002-C100-0005A1 | RF2003-C100-0005A1 | - | |
| Range | 20~2000 | 30~2000 | m | Grey object |
| Accuracy | ±1 | m | - | |
| Resolution | 1 | m | - | |
| Measure Freq. | 5-20 | Hz | - | |
| Laser wavelength | 905 | nm | Full angle | |
| Fan angle | <2 | mrad | ||
| Laser class | Class IIB | - | Eye safe | |
| Indicator | - | - | Eye safe | |
| Water and dust proof | IP65 | - | ||
| Can material | Al alloy | |||
| Can color | Black | |||
| Operating temperature | -30-+60 | °C | ||
| Storage temperature | -40-+70 | °C | ||
| Power supply | 9-12 | V | ||
| Power consumption | <2 | Watt | ||
| Dimensions | 151(L)×128(W)×62(H) | mm | ||
| Data interfaces | RS232 | - | One choice | |
| Data anode | See manual | |||
| Data cathode | See manual | |||
| Baud | 9600 | bps | ||
| Power supply anode | Red | - | ||
| Power supply cathode | Black | - | ||
| Control signal | NA | - | ||
| Control cable | NA | - | ||
| Communication protocol | See manual | - | ||
