High accuracy, long ranging
High measure frequency, 200Hz or 1000Hz
Real time measurement
Friendly and versatile interfaces
Compactness
High reliability
Laser Range Sensor 200m
Features:
High accuracy, long ranging
High measure frequency, 200Hz or 1000Hz
Real time measurement
Friendly and versatile interfaces
Compactness
High reliability
Applications
ADAS vehicle system
Robot navigating system
Traffic control system
Industrial automation
Military applications
Description

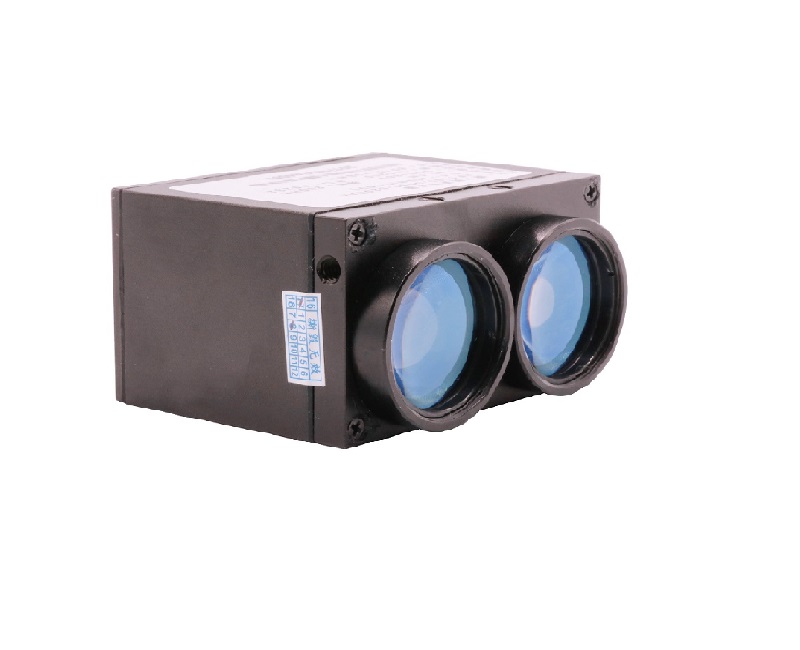

Laser range sensor A4 is the range finder sensor with high-performance and high measurement frequency, integrated with excellent optics design and high accuracy timer. It can measure up to 1000Hz stably, and can give out the real-time distance between range finder and the object. It is easy to integrate due to its friendly interfaces and compact size. It is ideal for Vehicle ADAS system, robot navigation system, and smart traffic monitoring.
Specifications
| Parameters | Parameter value | Unit | Remarks | |
| Model no. | RF1200-C030-0200A4 | RF1200-C030-1000A4 | - | |
| Range | 0.5-200 | m | Grey object | |
| Accuracy | ±(0.1-0.3) | m | Maximum error | |
| Resolution | 0.03 | m | - | |
| Measure Freq. | 200 | 1000 | Hz | - |
| Laser wavelength | 905 | nm | Full angle | |
| Fan angle | <5 | mrad | ||
| Laser class | Class IIB | - | Eye safe | |
| Indicator | - | - | Eye safe | |
| Water and dust proof | IP67 | - | ||
| Can material | Al alloy | |||
| Can color | Balck | |||
| Operating temperature | -30-+60 | °C | ||
| Storage temperature | -40-+70 | °C | ||
| Power supply | 9-24 | V | ||
| Power consumption | <2 | Watt | ||
| Dimensions | 55(L)×60(W)×35(H) | mm | ||
| Data interfaces | RS232; 0-5V | - | One choice | |
| Data anode | See manual | |||
| Data cathode | See manual | |||
| Baud | 9600 | bps | ||
| Power supply anode | Red | - | ||
| Power supply cathode | Black | - | ||
| Control signal | TTL（if have） | - | ||
| Control cable | White（if have） | - | ||
| Communication protocol | See manual | - | ||
