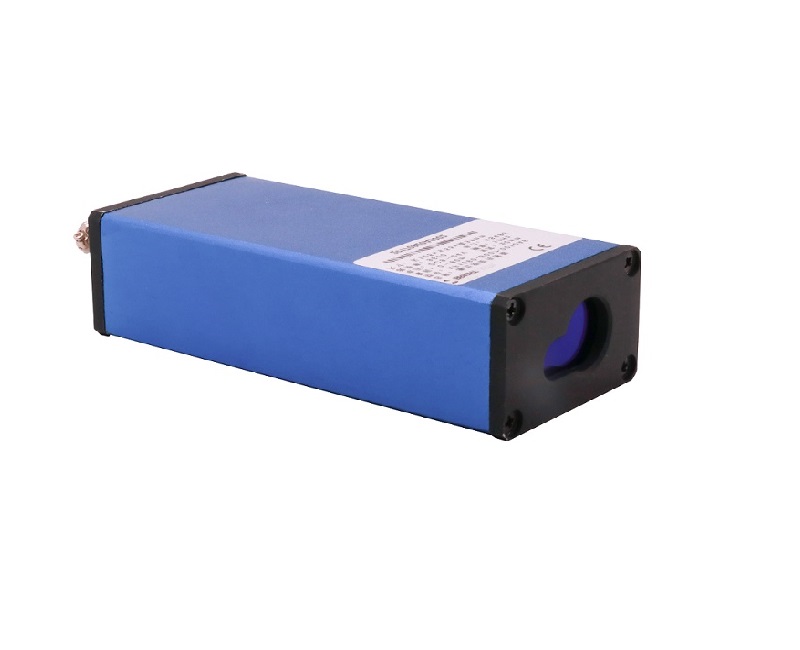

Laser Range Sensor 0.15-30m
Features:
High accuracy
High measure frequency
Real time measurement
Friendly and versatile interfaces
Compactness
High reliability
Applications：
Traffic light control
Positioning sensing
Electrical cable monitoring
Dam deformation monitoring
Hill slope monitoring
Range monitoring
Traffic flow monitoring
Stuff position monitoring
Military applications
Description:
Laser range sensor A6 is high-performance range finder sensors, integrated with excellent optics and high accuracy timer. It can measure up to 10Hz, and can give out the real-time distance between range finder and the object.It is easy to integrate due to its friendly interfaces and compact size.
Specifications:
| Parameters | Parameter value | Unit | Remarks | ||
| Model no. | RF1010-B002-1010A6 | RF1030-B002-1010A6 | RF1060-B002-1010A6 | - | |
| Range | 0.15-10 | 0.15-30 | 0.15-60 | m | Grey object |
| Accuracy | ±(1-2) | mm | Maximum error | ||
| Resolution | 0.5 | mm | - | ||
| Measure Freq. | 10 | Hz | - | ||
| Laser wavelength | 635/650 | nm | Full angle | ||
| Fan angle | <1 | mrad | |||
| Laser class | Class I | - | Eye safe | ||
| Indicator | Red | - | Eye safe | ||
| Water and dust proof | IP67 | - | |||
| Can material | Aluminum alloy | ||||
| Can color | Blue | ||||
| Operating temperature | -30-+60 | °C | |||
| Storage temperature | -40-+70 | °C | |||
| Power supply | 9-24 | V | |||
| Power consumption | <1 | Watt | |||
| Dimensions | 125(L)x55(W)x35(H) | mm | |||
| Data interfaces | RS232; RS485; TTL; Fiber interface | - | One choice | ||
| Data anode | See manual | ||||
| Data cathode | See manual | ||||
| Baud | 9600 | bps | |||
| Power supply anode | Red | - | |||
| Power supply cathode | Black | - | |||
| Weight | 310g | - | |||
