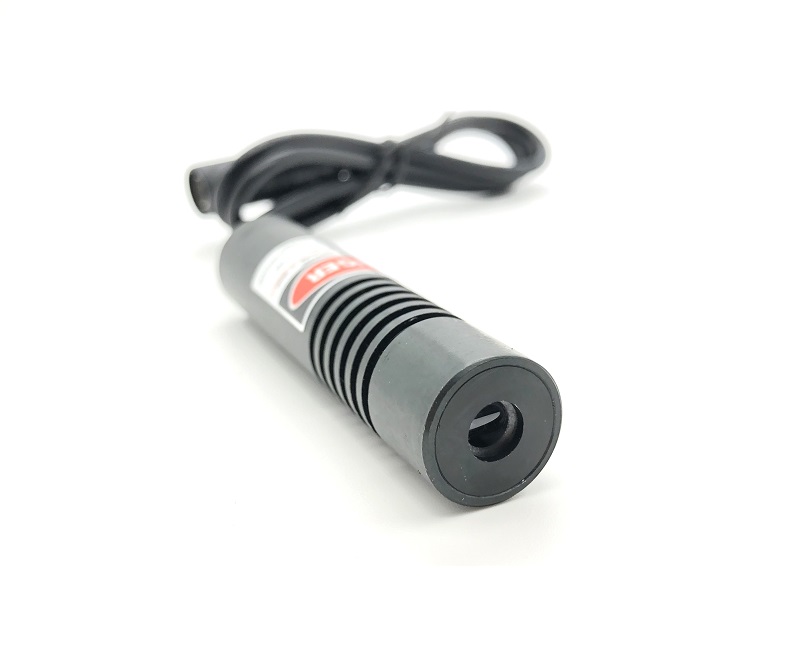

520nm Green line laser module 1-20mW

Specifications:

Wavelength: 520nm

Output power: 1mW,5mW,10mW,20mW

Beam divergence: 0.1mrad ~ 0.6mrad

Line thickness: Less then 2mm at 5m

Fan angle: 15°,20°,30°,110°

Laser line accuracy: <30”(at 5m)

Operating Voltage: DC3V-7V

Operating Temperature: -20℃～60℃

Storage Temperature: -40℃～85℃

Dimensions: Φ16×60mm

MTTF: 10000 hours

Characteristics:

High-quality laser diode,optical glass lens, driver circuit and housing

Better line quality

High reliability, high stability, long life,low price

Applications:

Machine vision

Industrial inspection

Industrial marking devices

3D contour mapping

Positioning & visualization

Biomedical

High-end alignment

Laser targeting devices and so on
