IR VCSEL Array Laser Illuminator LL10x0-06180-850CMP

Description

This IR illuminator is of high performance with low cost. It is the first laser illuminator similar to IR LED one globally. The laser is packaged with the form of IR LED, which can be mounted onto aluminum plate like the LEDs. Due to special optics design, the optical beam intensity is uniform. This performance is outstanding for field installations to match the field of view of lens, to solve the mismatch between illuminator and camera. It is very easy to use. The LED users just remove the LEDs and mount the laser diodes with current adjustment and put the right angle lens on the laser diodes. This laser illuminator is very bright and reliable and of low heat. Simultaneously, users can employ different beam angle illuminators to cover different range. It has the cost compared to IR LEDs, and it is ideal for security surveillance and medical applications and pattern recognition.

Features

■ Self-developed high performance VCSEL chip, no attenuation

■ High efficiency up to 40% @25°C, >35% @ 50°C
■ VCSEL chip, wide operating temperature -40-+85°C
■ VCSEL array chip with large emission area, eye safety
■ Self-developed high performance VCSEL chip, no attenuation

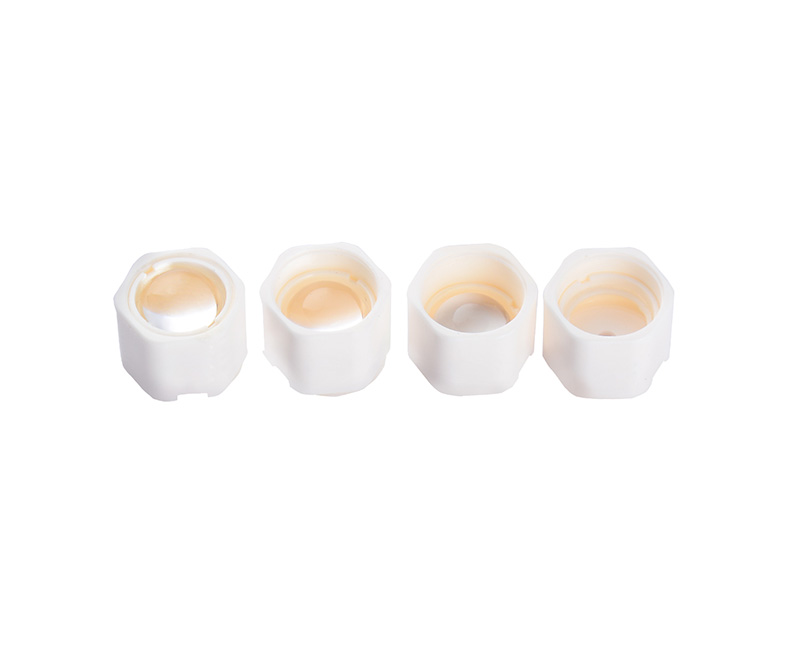

■ Beam angle tunable manually
■ High reliability, lifetime > 50000hrs
■ Compact, easy to integrate and use
■ Negligible off-axis, easy to collimate with camera lens
■ Uniform beam density, low speckle
■ Friendly interface, security surveillance compatible
■ CE certificate
■ High efficiency, low heat
■ Environment friendly

Applications

■ Dome
■ PTZ CCTV system
■ Box camera
■ Semi-spherical camera
■ Display & keyboard
■ Military applications

Specifications
