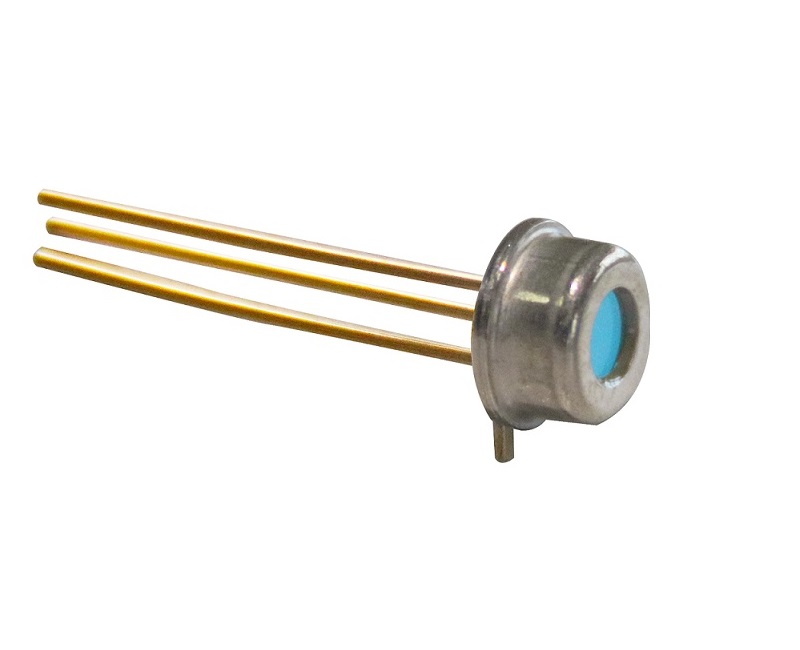

850nm 10W Pulsed VCSEL Laser Diode
Features
Multimode VCSEL
Good thermal conduction
Short rise time
Oxide isolation technology
High reliability
Easy to collimate
Applications
Lidars
Laser curtain
Range finder sensors
Medical applications
Proximity sensors
Military applications
Absolute maximum ratings
| Parameter | Symbol | Rating | Unit |
| Case Operating Temp | Top | -40 to 85 | ℃ |
Storage Temp | Tsto | -40 to 105 | ℃ |
| Reflow Soldering Temperature | Tsdr | 260℃(<5s) | ℃ |
| Reverse Voltage | Vr | 5 | V |
| Maximum Forward Pulse Current | Imax | 22 (duty cycle 0.1% max) | A |
| ESD exposure (Human body) model | ESD | 1K | V |
Optical-electrical characteristics @25℃ (pulsewidth 0.1ms, 1% duty cycle)
| Parameters | Conditions | Symbol | Unit | Min. | Typ. | Max. |
| Optical Power | IF=73A | Po | W | 10 | ||
| Threshold Current | - | Ith | A | 0.05 | ||
| Forward Pulse Current | - | - | A | 73 | ||
| Emission Area | - | - | um | 215x226 | ||
| Peak Wavelength | Po=10 W | - | nm | 840 | 850 | 860 |
| Laser Forward Voltage | IF=73A | Vf | V | 30 | ||
| Series Resistance | IF=73A | R | Ω | 0.41 | ||
| Original Beam Angle | IF=73A | - | Degrees | 20 | ||
| Wavelength Temp. drift | IF=73A | - | nm/℃ | 0.07 | ||
| Rise Time | Tr | ns | 2.4 | |||
| Soldering Temperature | - | ℃ | - | 260(5s) | ||
| Duty Cycle | - | - | % | - | 0.1 | |
| Substrate | Cu/Ag | |||||
