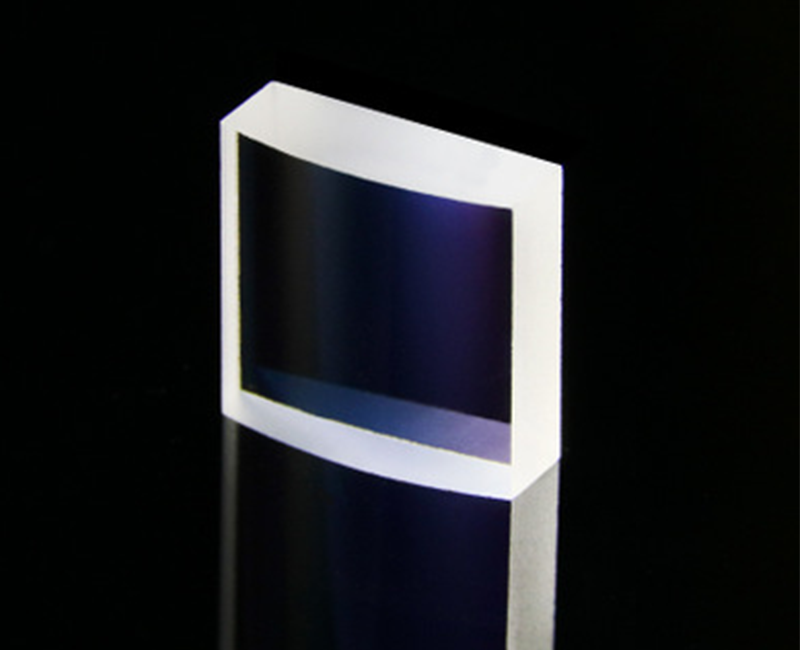

BK7 Plano-Convex Cylindrical Lenses
  • BK7 Plano-Convex Cylindrical Lenses

BK7 Plano-Convex Cylindrical Lenses

    BK7 Plano-convex Cylindrical Lenses

    Material:BK7

    Design Wavelength:587.6nm

    Focal Length Tolerance:±1%

    Diameter Tolerance:+0.0/-0.1mm

    Thickness Tolerance:±0.2mm

    Surface Accuracy:λ/2@632.8n

    Surface Quality:60-40

    Centration:<3'

    Clear Aperture:>90%

    Bevelling:<0.2×45°

    Coating:AR

            A:350-650nm

            B:650-1050nm

            C:1050-1580nm


BK7 Plano-convex Cylindrical Lenses

Material:BK7

Design Wavelength:587.6nm

Focal Length Tolerance:±1%

Diameter Tolerance:+0.0/-0.1mm

Thickness Tolerance:±0.2mm

Surface Accuracy:λ/2@632.8n

Surface Quality:60-40

Centration:<3'

Clear Aperture:>90%

Bevelling:<0.2×45°

Coating:AR

        A:350-650nm

        B:650-1050nm

        C:1050-1580nm

No.EFLLHRTcTeBFL
TS-21J1598L1S3.906.004.002.023.802.001.39
TS-21J1598L2S3.908.004.002.023.802.001.39
TS-21J1310L1S4.006.004.002.073.562.001.65
TS-21J1310L2S4.008.004.002.073.562.001.65
TS-21J1918L1S5.806.004.003.002.762.003.98
TS-21J1918L2S5.808.004.003.002.762.003.98
TS-21J1227L1S6.358.006.003.283.952.003.75
TS-21J1227L2S6.3512.006.003.283.952.003.75
TS-21J1874L1S7.709.007.003.984.092.005.00
TS-21J1874L2S7.7014.007.003.984.092.005.00
TS-21J1822L1S9.7012.0010.005.016.692.005.29
TS-21J1822L2S9.7020.0010.005.016.692.005.29
TS-21J1878L1S10.0012.0010.005.175.882.006.12
TS-21J1878L2S10.0020.0010.005.175.882.006.12
TS-21J1942L1S12.7012.0010.006.564.312.009.86
TS-21J1942L2S12.7020.0010.006.564.312.009.86
TS-21J1805L1S12.7015.0013.006.567.672.007.64
TS-21J1805L2S12.7026.0013.006.567.672.007.64
TS-21J1909L1S13.7015.0013.007.086.272.009.57
TS-21J1909L2S13.7026.0013.007.086.272.009.57
TS-21J1636L1S15.0012.0010.007.753.822.0012.48
TS-21J1636L2S15.0020.0010.007.753.822.0012.48
TS-21J1095L1S19.0018.0016.009.826.132.0014.96
TS-21J1095L2S19.0032.0016.009.826.132.0014.96
TS-21J1155L1S19.7018.0016.0010.185.882.0015.82
TS-21J1155L2S19.7032.0016.0010.185.882.0015.82
TS-21J1960L1S20.0012.0010.0010.343.292.0017.83
TS-21J1960L2S20.0020.0010.0010.343.292.0017.83
TS-21J1328L1S20.0017.0015.0010.345.222.0016.56
TS-21J1328L2S20.0030.0015.0010.345.222.0016.56
TS-21J1638L1S22.2015.0012.5011.473.852.0019.66
TS-21J1638L2S22.2025.0012.5011.473.852.0019.66
TS-21J1810L1S25.0012.0010.0012.923.002.0023.02
TS-21J1810L2S25.0020.0010.0012.923.002.0023.02
TS-21J1075L1S25.0022.0020.0012.926.742.0020.56
TS-21J1075L2S25.0040.0020.0012.926.742.0020.56
TS-21J1014L1S25.4018.0016.0013.134.722.0022.29
TS-21J1014L2S25.4032.0016.0013.134.722.0022.29
TS-21J1622L1S25.4028.0025.4013.1311.822.0017.61
TS-21J1622L2S25.4051.0025.4013.1311.822.0017.61
TS-21J1212L1S30.0022.0020.0015.505.652.0026.28
TS-21J1212L2S30.0040.0020.0015.505.652.0026.28
TS-21J1765L1S38.1028.0025.4019.696.642.0033.72
TS-21J1765L2S38.1051.0025.4019.696.642.0033.72
TS-21J1402L1S40.0012.0010.0020.672.612.0038.28
TS-21J1402L2S40.0020.0010.0020.672.612.0038.28
TS-21J1125L1S40.0022.0020.0020.674.572.0036.99
TS-21J1125L2S40.0040.0020.0020.674.572.0036.99
TS-21J1821L1S50.0022.0020.0025.844.012.0047.36
TS-21J1821L2S50.0040.0020.0025.844.012.0047.36
TS-21J1695L1S50.0032.0030.0025.846.802.0045.52
TS-21J1695L2S50.0060.0030.0025.846.802.0045.52
TS-21J1728L1S50.8053.0050.8026.2521.622.0036.55
TS-21J1728L2S50.8090.0050.8026.2521.622.0036.55
TS-21J1430L1S60.0032.0030.0031.015.872.0056.13
TS-21J1430L2S60.0060.0030.0031.015.872.0056.13
TS-21J1036L1S60.0062.0060.0031.0125.182.0043.40
TS-21J1036L2S60.0095.0060.0031.0125.182.0043.40
TS-21J1993L1S62.9053.0050.8032.5114.222.0053.52
TS-21J1993L2S62.9095.0050.8032.5114.222.0053.52
TS-21J1477L1S70.0032.0030.0036.185.252.0066.54
TS-21J1477L2S70.0060.0030.0036.185.252.0066.54
TS-21J1703L1S75.0053.0050.8038.7611.482.0067.43
TS-21J1703L2S75.0095.0050.8038.7611.482.0067.43
TS-21J1054L1S75.6028.0025.4039.075.123.0072.22
TS-21J1054L2S75.6051.0025.4039.075.123.0072.22
TS-21J1258L1S75.6053.0050.8039.0712.383.0067.44
TS-21J1258L2S75.6095.0050.8039.0712.383.0067.44
TS-21J1105L1S80.0022.0020.0041.344.223.0077.22
TS-21J1105L2S80.0040.0020.0041.344.223.0077.22
TS-21J1520L1S80.0082.0080.0041.3433.893.0057.66
TS-21J1520L2S80.00145.0080.0041.3433.893.0057.66
TS-21J1567L1S100.0032.0030.0051.685.223.0096.56
TS-21J1567L2S100.0060.0030.0051.685.223.0096.56
TS-21J1268L1S100.0090.00100.0051.6841.633.0072.55
TS-21J1268L2S100.00145.00100.0051.6841.633.0072.55
TS-21J1640L1S130.0032.0030.0067.184.693.00126.91
TS-21J1640L2S130.0060.0030.0067.184.693.00126.91
TS-21J1934L1S150.0022.0020.0077.523.643.00147.60
TS-21J1934L2S150.0040.0020.0077.523.643.00147.60
TS-21J1629L1S150.0032.0030.0077.524.463.00147.06
TS-21J1629L2S150.0060.0030.0077.524.463.00147.06
TS-21J1895L1S150.0090.00100.0077.5221.283.00135.97
TS-21J1895L2S150.00145.00100.0077.5221.283.00135.97
TS-21J1653L1S200.0032.0030.00103.364.093.00197.30
TS-21J1653L2S200.0060.0030.00103.364.093.00197.30
TS-21J1309L1S200.0090.00100.00103.3615.893.00189.52
TS-21J1309L2S200.00145.00100.00103.3615.893.00189.52
TS-21J1277L1S250.0022.0020.00129.203.383.00247.77
TS-21J1277L2S250.0040.0020.00129.203.383.00247.77
TS-21J1267L1S250.0062.0060.00129.206.533.00245.69
TS-21J1267L2S250.0095.0060.00129.206.533.00245.69
TS-21J1558L1S300.0032.0030.00155.043.723.00297.55
TS-21J1558L2S300.0060.0030.00155.043.723.00297.55
TS-21J1996L1S300.0062.0060.00155.045.933.00296.09
TS-21J1996L2S300.0095.0060.00155.045.933.00296.09
TS-21J1363L1S400.0032.0030.00206.723.543.00397.67
TS-21J1363L2S400.0060.0030.00206.723.543.00397.67
TS-21J1144L1S500.0032.0030.00258.403.433.00497.74
TS-21J1144L2S500.0060.0030.00258.403.433.00497.74
TS-21J1836L1S700.0032.0030.00361.763.313.00697.82
TS-21J1836L2S700.0060.0030.00361.763.313.00697.82
TS-21J1516L1S1000.0032.0030.00516.803.213.00997.88
TS-21J1516L2S1000.0060.0030.00516.803.213.00997.88


*
*
*
*
*
