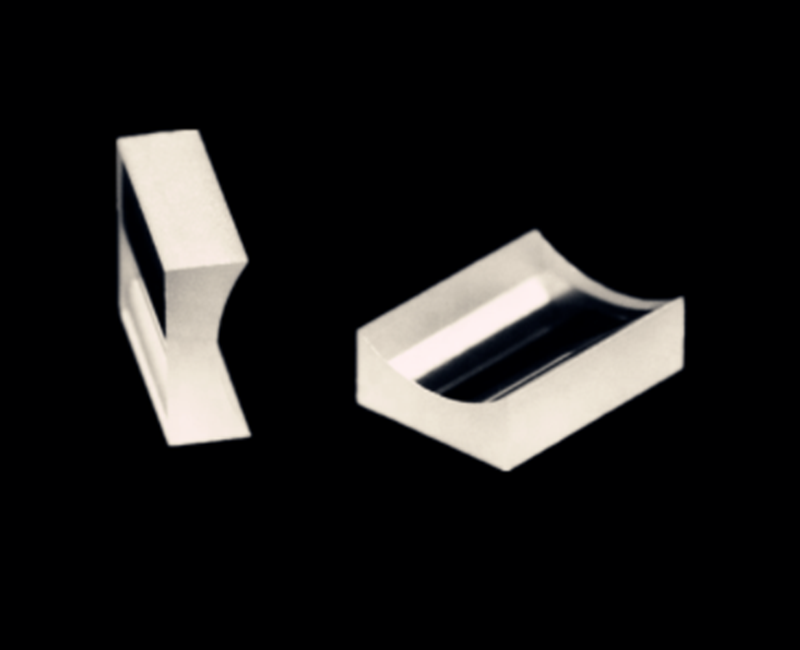

BK7 Plano-Concave Cylindrical Lenses
  • BK7 Plano-Concave Cylindrical Lenses

BK7 Plano-Concave Cylindrical Lenses

    BK7 Plano-convex Cylindrical Lenses

    Material:BK7

    Design Wavelength:587.6nm

    Focal Length Tolerance:±1%

    Diameter Tolerance:+0.0/-0.1mm

    Thickness Tolerance:±0.2mm

    Surface Accuracy:λ/2@632.8n

    Surface Quality:60-40

    Centration:<3'

    Clear Aperture:>90%

    Bevelling:<0.2×45°

    Coating:AR

            A:350-650nm

            B:650-1050nm

            C:1050-1580nm


BK7 Plano-convex Cylindrical Lenses

Material:BK7

Design Wavelength:587.6nm

Focal Length Tolerance:±1%

Diameter Tolerance:+0.0/-0.1mm

Thickness Tolerance:±0.2mm

Surface Accuracy:λ/2@632.8n

Surface Quality:60-40

Centration:<3'

Clear Aperture:>90%

Bevelling:<0.2×45°

Coating:AR

        A:350-650nm

        B:650-1050nm

        C:1050-1580nm

No.EFLLHRTcTeBFL
TS-21K1395L1S-3.906.004.00-2.022.002.70-5.22
TS-21K1395L2S-3.908.004.00-2.022.002.70-5.22
TS-21K1597L1S-4.006.004.00-2.072.002.60-5.32
TS-21K1597L2S-4.008.004.00-2.072.002.60-5.32
TS-21K1523L1S-5.806.004.00-3.002.002.40-7.12
TS-21K1523L2S-5.808.004.00-3.002.002.40-7.12
TS-21K1087L1S-6.408.006.00-3.312.003.20-7.72
TS-21K1087L2S-6.4012.006.00-3.312.003.20-7.72
TS-21K1363L1S-7.709.007.00-3.982.003.40-9.02
TS-21K1363L2S-7.7014.007.00-3.982.003.40-9.02
TS-21K1836L1S-9.7012.0010.00-5.012.004.80-11.02
TS-21K1836L2S-9.7020.0010.00-5.012.004.80-11.02
TS-21K1684L1S-12.7012.0010.00-6.562.003.80-14.02
TS-21K1684L2S-12.7020.0010.00-6.562.003.80-14.02
TS-21K1816L1S-13.7015.0013.00-7.082.005.30-15.02
TS-21K1816L2S-13.7026.0013.00-7.082.005.30-15.02
TS-21K1753L1S-15.0012.0010.00-7.752.003.40-16.32
TS-21K1753L2S-15.0020.0010.00-7.752.003.40-16.32
TS-21K1037L1S-19.0021.0019.00-9.822.007.90-20.32
TS-21K1037L2S-19.0038.0019.00-9.822.007.90-20.32
TS-21K1085L1S-20.0017.0015.00-10.342.004.70-21.32
TS-21K1085L2S-20.0030.0015.00-10.342.004.70-21.32
TS-21K1006L1S-22.2015.0012.50-11.472.003.50-23.52
TS-21K1006L2S-22.2025.0012.50-11.472.003.50-23.52
TS-21K1426L1S-25.0012.0010.00-12.922.002.80-26.32
TS-21K1426L2S-25.0020.0010.00-12.922.002.80-26.32
TS-21K1900L1S-25.4018.0016.00-13.132.004.40-26.72
TS-21K1900L2S-25.4032.0016.00-13.132.004.40-26.72
TS-21K1787L1S-25.4028.0025.40-13.132.0010.30-26.72
TS-21K1787L2S-25.4051.0025.40-13.132.0010.30-26.72
TS-21K1982L1S-30.0022.0020.00-15.502.005.30-31.32
TS-21K1982L2S-30.0040.0020.00-15.502.005.30-31.32
TS-21K1325L1S-38.1028.0026.00-19.692.006.50-39.42
TS-21K1325L2S-38.1052.0026.00-19.692.006.50-39.42
TS-21K1283L1S-40.0012.0010.00-20.672.002.50-41.32
TS-21K1283L2S-40.0020.0010.00-20.672.002.50-41.32
TS-21K1662L1S-50.0022.0020.00-25.842.003.80-51.32
TS-21K1662L2S-50.0040.0020.00-25.842.003.80-51.32
TS-21K1336L1S-50.0032.0030.00-25.842.006.50-51.32
TS-21K1336L2S-50.0060.0030.00-25.842.006.50-51.32
TS-21K1792L1S-50.8053.0050.80-26.252.0019.90-52.12
TS-21K1792L2S-50.8090.0050.80-26.252.0019.90-52.12
TS-21K1995L1S-60.0032.0030.00-31.012.005.60-61.32
TS-21K1995L2S-60.0060.0030.00-31.012.005.60-61.32
TS-21K1015L1S-60.0062.0060.00-31.012.0023.50-61.32
TS-21K1015L2S-60.0095.0060.00-31.012.0023.50-61.32
TS-21K1216L1S-62.9053.0050.80-32.512.0013.60-64.22
TS-21K1216L2S-62.9095.0050.80-32.512.0013.60-64.22
TS-21K1913L1S-70.0032.0030.00-36.182.005.00-71.32
TS-21K1913L2S-70.0060.0030.00-36.182.005.00-71.32
TS-21K1431L1S-75.0053.0050.80-38.762.0011.10-76.32
TS-21K1431L2S-75.0090.0050.80-38.762.0011.10-76.32
TS-21K1689L1S-75.6053.0050.80-39.072.0012.00-77.58
TS-21K1689L2S-75.6090.0050.80-39.072.0012.00-77.58
TS-21K1526L1S-80.0022.0020.00-41.342.004.10-81.98
TS-21K1526L2S-80.0040.0020.00-41.342.004.10-81.98
TS-21K1310L1S-80.0082.0080.00-41.343.0032.10-81.98
TS-21K1310L2S-80.00145.0080.00-41.343.0032.10-81.98
TS-21K1743L1S-100.0032.0030.00-51.683.005.10-101.98
TS-21K1743L2S-100.0060.0030.00-51.683.005.10-101.98
TS-21K1936L1S-100.0090.00100.00-51.683.0039.90-101.98
TS-21K1936L2S-100.00145.00100.00-51.683.0039.90-101.98
TS-21K1819L1S-130.0032.0030.00-67.183.004.60-131.98
TS-21K1819L2S-130.0060.0030.00-67.183.004.60-131.98
TS-21K1419L1S-150.0032.0030.00-77.523.004.40-151.98
TS-21K1419L2S-150.0060.0030.00-77.523.004.40-151.98
TS-21K1956L1S-150.0090.00100.00-77.523.0020.90-151.98
TS-21K1956L2S-150.00145.00100.00-77.523.0020.90-151.98
TS-21K1069L1S-200.0032.0030.00-103.363.004.00-201.98
TS-21K1069L2S-200.0060.0030.00-103.363.004.00-201.98
TS-21K1115L1S-200.0090.00100.00-103.363.0015.60-201.98
TS-21K1115L2S-200.00145.00100.00-103.363.0015.60-201.98
TS-21K1030L1S-250.0032.0030.00-129.203.003.80-251.98
TS-21K1030L2S-250.0060.0030.00-129.203.003.80-251.98
TS-21K1984L1S-300.0062.0060.00-155.043.005.80-301.98
TS-21K1984L2S-300.0095.0060.00-155.043.005.80-301.98
TS-21K1487L1S-400.0032.0030.00-206.723.003.50-401.98
TS-21K1487L2S-400.0060.0030.00-206.723.003.50-401.98
TS-21K1281L1S-500.0032.0030.00-258.403.003.40-501.98
TS-21K1281L2S-500.0060.0030.00-258.403.003.40-501.98
TS-21K1220L1S-700.0032.0030.00-361.763.003.30-701.98
TS-21K1220L2S-700.0060.0030.00-361.763.003.30-701.98
TS-21K1002L1S-1000.0032.0030.00-516.803.003.20-1001.98
TS-21K1002L2S-1000.0060.0030.00-516.803.003.20-1001.98


*
*
*
*
*
