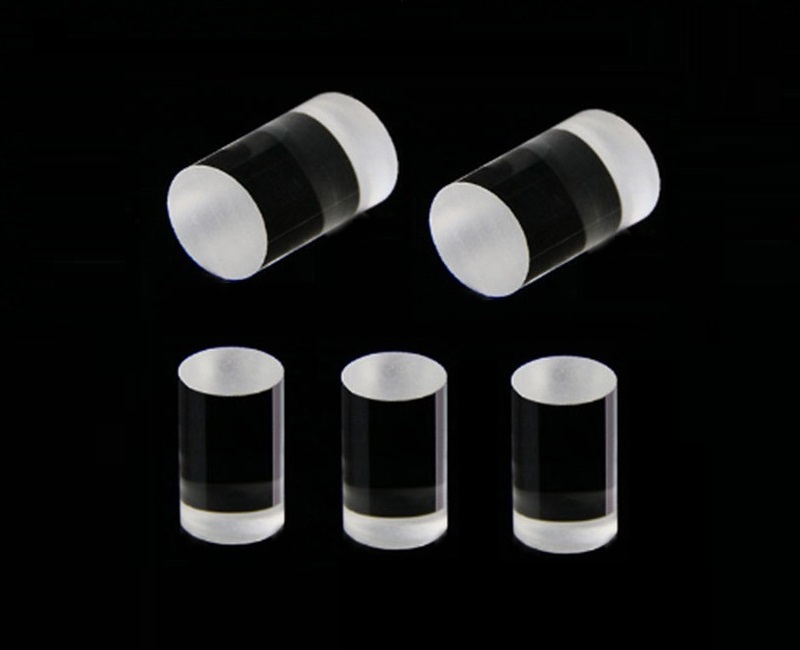

BK7 Rod Lenses
  • BK7 Rod Lenses

BK7 Rod Lenses

    Material:BK7

    Tolerance:±0.01mm

    Thickness Tolerance:±0.1mm

    Surface Accuracy:free

    Surface Quality:60-40

    Sphericity:0.005mm

    Clear Aperture:>90%

    Bevelling:<0.2×45°


Rod Lenses are designed for use in a variety of laser and imaging systems, these components are available in a range of micro sizes for integration into a host of OEM applications. Custom sizes, variations in polishing/ ground surfaces and additional coatings are available upon request.Material:BK7

Tolerance:±0.01mm

Thickness Tolerance:±0.1mm

Surface Accuracy:free

Surface Quality:60-40

Sphericity:0.005mm

Clear Aperture:>90%

Bevelling:<0.2×45°

NO.Dia(mm)L(mm)
TS-21H0102R12
TS-21H0204R24
TS-21H0306R36
TS-21H0310R310
TS-21H0408R48
TS-21H0510R510
TS-21H0515R515
TS-21H0520R520
TS-21H0610R610
TS-21H0615R615
TS-21H0620R620
TS-21H0710R710
TS-21H0715R715
TS-21H0720R720
TS-21H0815R815
TS-21H0820R820
TS-21H0915R915
TS-21H0920R920
TS-21H1015R1015
TS-21H1020R1020
TS-21H1515R1515
TS-21H1520R1520
TS-21H2020R2020



*
*
*
*
*
