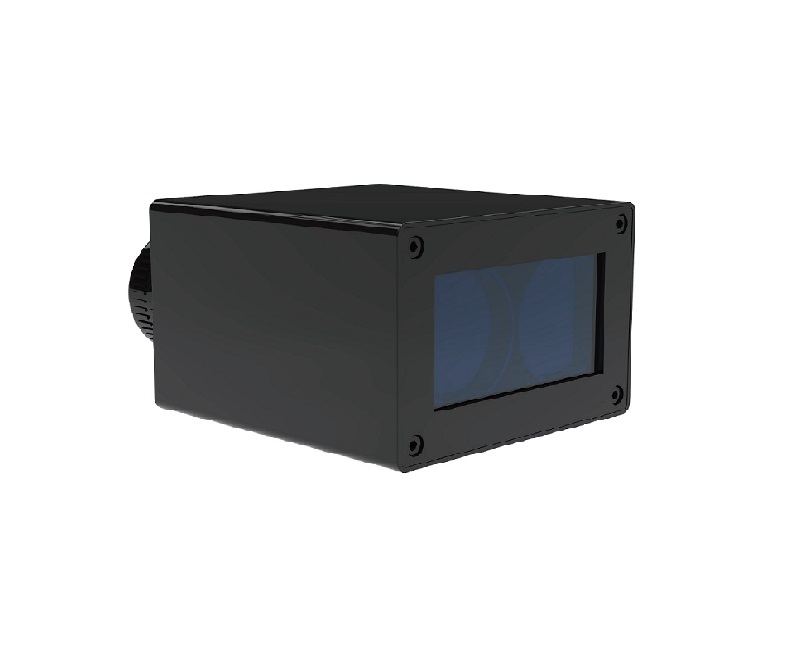

Laser Range Sensor 5-600m, 10-1000m
Features:
High precision
High measurement frequency
High reliability
IP67 waterproof protection
Good real-time performance
Friendly interface
Small size
Applications:
Positioning sensing
Traffic control system
Range monitoring
Military applications
Electrical cable monitoring
Dam deformation monitoring
Hill slope monitoring
Traffic flow monitoring
Stuff position monitoring
Description:
Laser range sensor A2 is high-performance range finder sensors, integrated with excellent optics and high accuracy timer. It can measure up to 80Hz, and can give out the real-time distance between range finder and the object. It is easy to integrate due to its friendly interfaces and compact size.
Specifications:
| Parameters | Parameter value | Unit | Remarks | |
| Model no. | RF1600-C100-0005A2 | RF2001-C100-0005A2 | - | |
| Range | 5-600 | 10-1000 | m | Grey object |
| Accuracy | ±1 | m | - | |
| Resolution | 1 | m | - | |
| Measure Freq. | 5 | Hz | - | |
| Laser wavelength | 905 | nm | Full angle | |
| Fan angle | <5 | mrad | ||
| Laser class | Class IIB | - | Eye safe | |
| Indicator | Overlapped if have | - | Eye safe | |
| Water and dust proof | IP67 | - | ||
| Can material | Al alloy | |||
| Can color | Deep blue | |||
| Operating temperature | -30-+60 | °C | ||
| Storage temperature | -40-+70 | °C | ||
| Power supply | 9-12 | V | ||
| Power consumption | <2 | Watt | ||
| Dimensions | 117.2×74×56 | mm | ||
| Data interfaces | RS232; RS485; 4-20mA；fiber connector | - | One choice | |
| Data anode | See manual | |||
| Data cathode | See manual | |||
| Baud | 9600 | bps | ||
| Power supply anode | Red | - | ||
| Power supply cathode | Black | - | ||
| Control signal | TTL（if have） | - | ||
| Control cable | White（if have） | - | ||
| Communication protocol | See manual | - | ||
