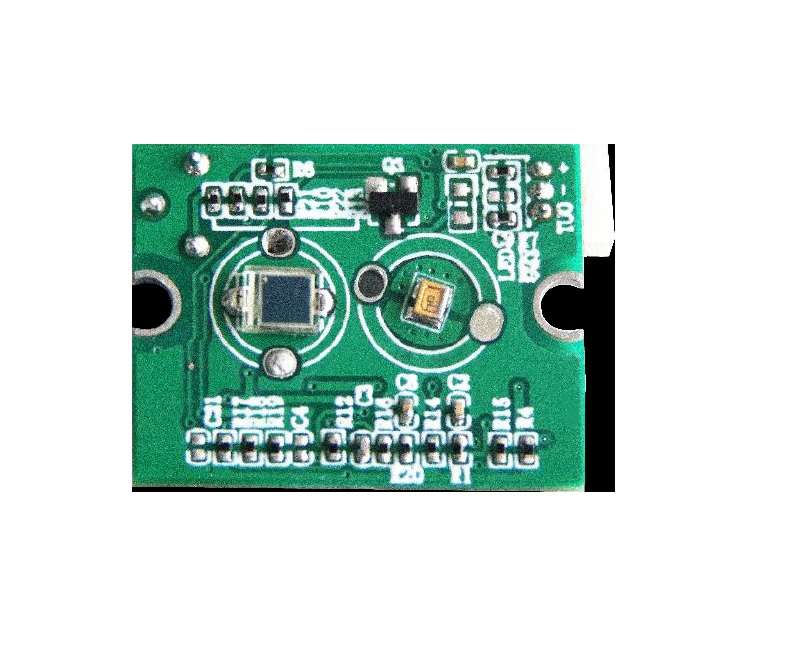

940nm 35cm Laser proximity sensor,10KHZ
Features:
High precision
High measurement frequency
More interface
Friendly interface
Small size
Good real-time performance
Applications:
Proximity sensing
Displacement sensing
Water faucet
Auto door
Smart home, robot anti-collision system
Description:
We offers all-purpose Laser proximity sensors which has completely solved the flaw of traditional infrared and the ultrasonic wave: low sensitivity, slow response, low reliability, big power consumption and so on; Providing with different sensing ranges of 0.3m, 0.8m and 2m. High quality optical design makes the proximity sensor small size, high measurement frequency, high reliability and fast heat dissipation, which are widely used in the field of proximity sensor, smart house, water faucet, auto-door, robot anti-collision system, etc.
Specifications:
| Parameters | Typical values | Unit | Remarks |
Model no. | LRF0035-C005-1010A7-A | - | |
| Range | 0.35 | m | White object |
| Accuracy | ±5 | cm | |
| Repeatability | ±5 | cm | |
| Resolution ratio | 5 | cm | |
| Measured Frequency | 10 | kHz | |
| Response time | 8 | us | |
| Laser wavelength | 940 | nm | |
| Divergence angle | 20 | ° | |
| Laser class | Class I | - | eye safe |
| Power voltage | DC9~16 | V | |
| Power consumption | <0.4 | W | |
| Operating temperature | -30~50 | °C | |
| Storage temperature | -40~85 | °C | |
| Waterproof and dustproof | - | - | |
| Dimensions | L26.2×W20.5×H10 | mm | |
| Installation size | 24.3 (2xM2) | mm | See Mechanical Schematics |
| Data interface | 0-5 | V | |
| Power anode/cathode | See Electronic interface | ||
| Output interface | - | ||
| Weight | 20 | g |
