808nm 50W VCSESL Diode
Features
808nm single wavelength
Low wavelength drift
Circular spot
SMD package
High Reliability
Easy to collimate
Applications
Lidars
Pump source of solid-state laser
Laser machining
3D sensors
Cosmetics i.e. Hair removal

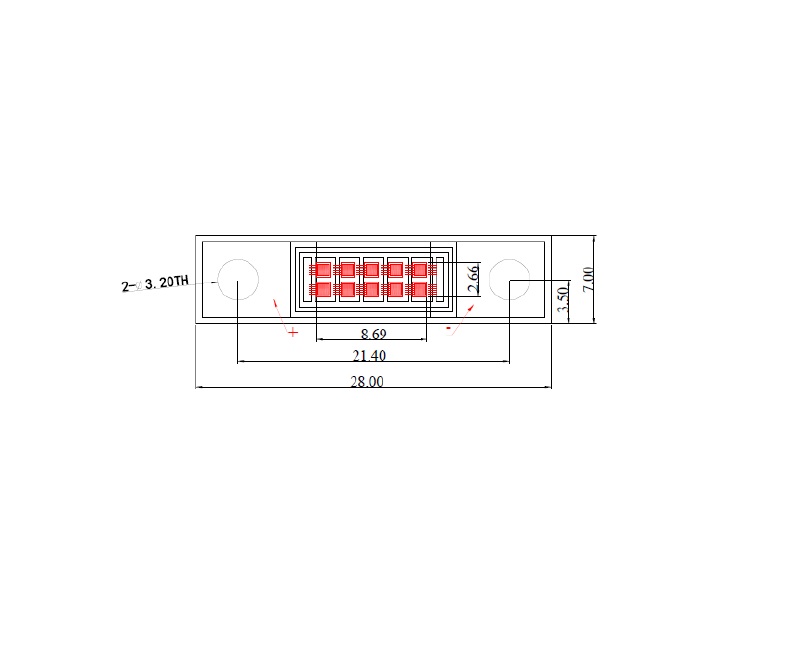

Absolute Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Case Operating Temp | Top | -40 to 70 | ℃ |
| Storage Temp | Tsto | -40 to 85 | ℃ |
| Reflow Soldering Temperature | Tsdr | 260℃(10s) | ℃ |
| Reverse Voltage | Vr | 10 | V |
| Maximum Continuous Current | Imax | 15 | A |
| ESD exposure (Human body) model | ESD | 2-4K | V |
Optical-electrical characteristics @25℃
| Parameters | Symbol | Conditions | Min. | Typ. | Max. | Unit |
| CW Mode | ||||||
| Optical Power | Po | IF=10A | 40 | W | ||
| Threshold Current | Ith | 2 | A | |||
| Forward Current | IF | 10 | A | |||
| Slope efficiency | 5.0 | W/A | ||||
| Power conversion efficiency | η | IF=10A | 33 | % | ||
| Peak Wavelength | λP | Po=50W | 800 | 808 | 816 | nm |
| Laser Forward Voltage | Vf | IF=10A | 12 | V | ||
| Series Resistance | Rs | IF=10A | 0.3 | Ω | ||
| Emission area | 8.7×5.9 | mm | ||||
| Beam Angle (1/e^2) | θ | IF=10A | 25 | Degrees | ||
| Beam Angle(FWHM) | θ | IF=10A | Degrees | |||
| Pulse Mode (4us, 250Hz, Duty cycle 1%) | ||||||
| Optical Peak Power | Po | IF =50A | 118 | W | ||
| Forward Current | IF | 50 | A | |||
| Laser Forward Voltage | VF | IF =50A | 19 | V | ||
| Pulse Mode (1ms, 1Hz, Duty cycle 1%) | ||||||
| Optical Peak Power | Po | IF =18A | 75 | W | ||
| Forward Current | IF | 18 | A | |||
| Laser Forward Voltage | VF | IF =18A | 13.6 | V | ||
| Pulse Mode (100ms, 1Hz, Duty cycle 10%) | ||||||
| Optical Peak Power | Po | IF =12A | 50 | W | ||
| Forward Current | IF | IF =12.5A | 12.5 | A | ||
| Laser Forward Voltage | VF | 12 | V | |||
| Illuminance area | - | @15mm | 0.72 | cm2 | ||
| Energy density | - | 1Hz, IF =12.5A | 6.75 | J/cm2 | ||
| Wavelength shift | ∂λP/∂T | IF =12.5A | 0.07 | nm/°C | ||
| Soldering Temperature | - | 260(10s) | ℃ | |||
| Substrate | AlN, Cu | |||||
