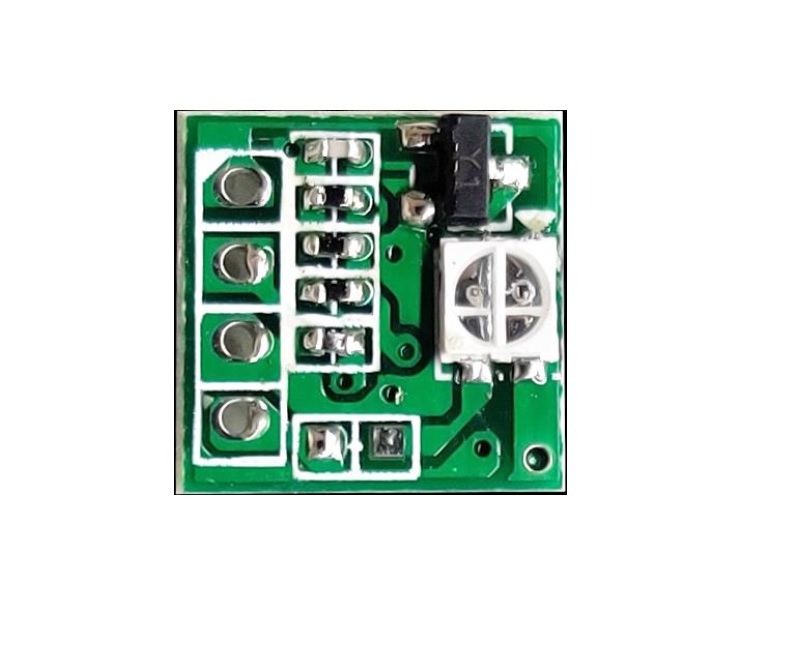

940nm 15cm Laser proximity sensor,1KHZ
Features:
High precision
External enabling control
Friendly interface
Compactness
Good real-time performance
Applications:
Proximity sensing
Motion sensing
Water faucet&toilet
Auto door
Smart home, robot anti-collision system
Specifications:
| Parameters | Typical values | Unit | Remarks |
Model no. | LRF0015-C003-1001A7-C | - | |
| Range | 0.15 | m | Yellow skin |
| Resolution | 3 | cm | |
| Measured Frequency | External control | Hz | Optional |
| Response time | 0.1 | s | |
| Laser wavelength | 940 | nm | |
| Divergence angle | 27 | ° | |
| Laser class | Class I | - | eye safe |
| Power voltage | DC5-6 | V | |
| Power consumption(CW mode) | <0.25 | W | <30mA |
| Power consumption(Pulsed mode) | 15-25 | mW | 3-5mA, 1kHz |
| Operating temperature | -20~60 | °C | - |
| Storage temperature | -40~85 | °C | - |
| Waterproof and dustproof | / | - | - |
| Dimensions | L10×W10×H2.5 | mm | - |
| Installation size | - | mm | - |
| Data interface | 3.3-5 | V | - |
| Power anode/cathode | See Mechanical Schematics | - | - |
| Output interface | - | - | - |
| Weight | 1 | g | - |
